MPO 40GBASE-PSM4 LR 1310nm QSFP+10KM Optical Transceiver Module
General
The HL-QSDP40G-PSM4-LR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 40Gbps 10km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
Product Feature
Four-channel full-duplex transceiver modules
Transmission data rate up to 11.2Gbit/s per channel
Up to 10km transmission of single mode fiber
Low power consumption <2.5W,meet class 3
Operating case temperature: 0 to 70℃
3.3V power supply voltage
Hot Pluggable QSFP form factor
RoHS 6 compliant

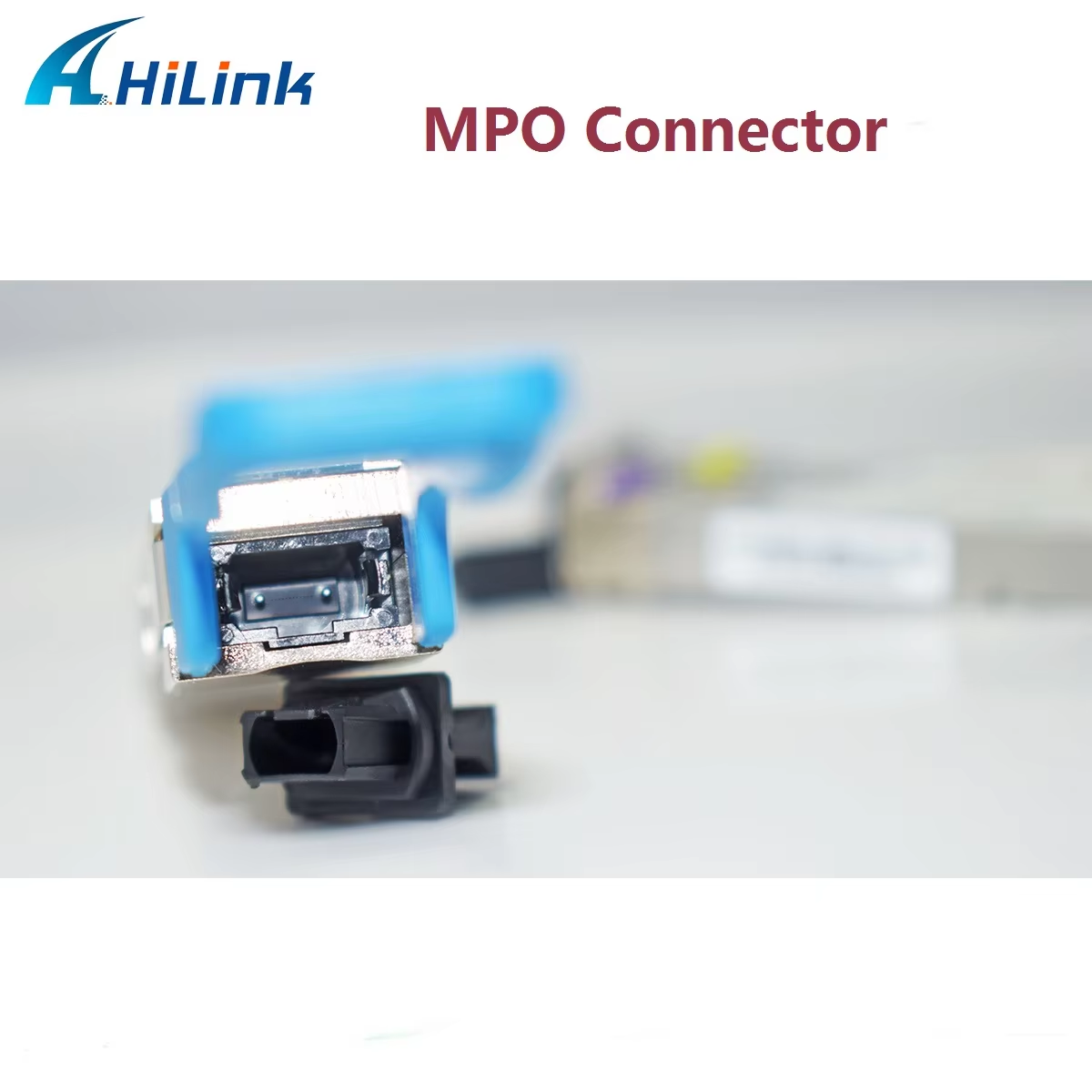

Single MPO connector receptacle
Built-in digital diagnostic function
Application
Infiniband QDR and DDR interconnects
40G Ethernet
Proprietary High Speed Interconnections
Data center
QSFP Series :
| Part Number | Product Description |
| HL-QSFP-40G-SR4 | QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM |
| HL-QSFP28-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M |
| HL-QSFP28-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP28-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-ZR4 | QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM |

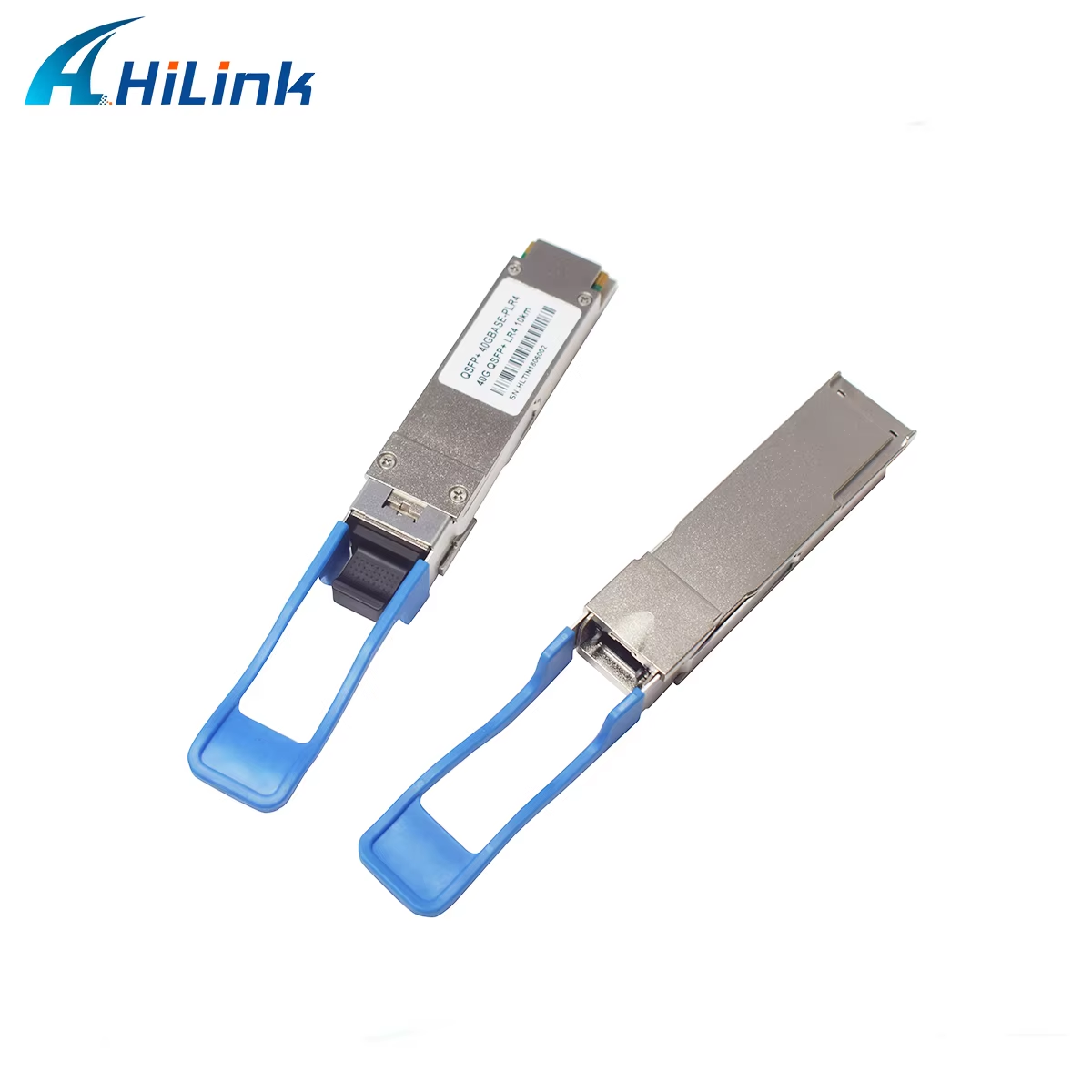

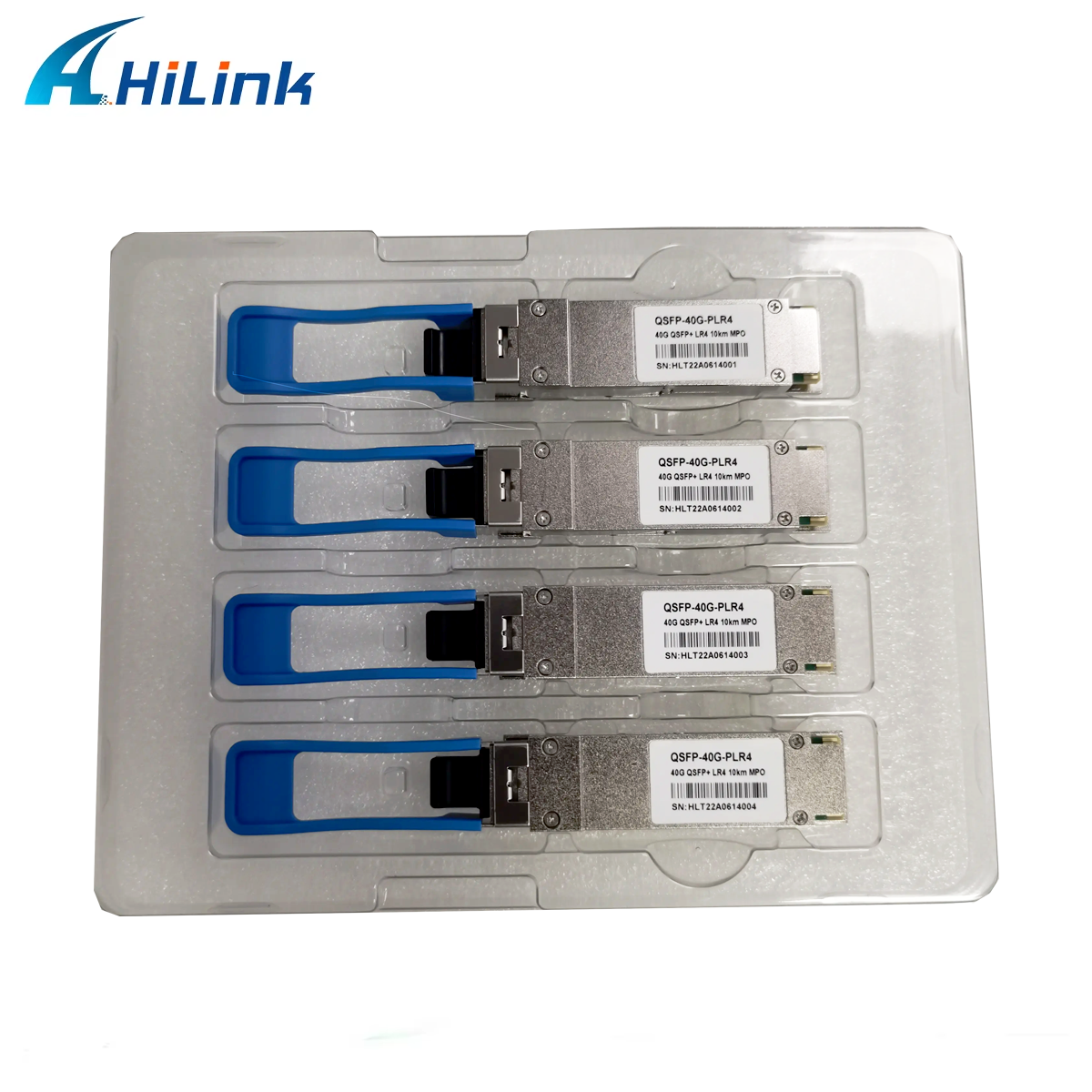

Product Picture Shows:
