400Gb/s QSFP-DD LR4 10km SMF Optical Transceiver Duplex LC Connector for RoHS Compliant and Long Distance

Brand Name : HILINK

Model Number : QSFPDD-400GB-LR4

Certification : RoHS Compliant

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Western Union,MoneyGram,Paypal

Supply Ability : 2000pcs/month

Packaging Details : Static bag, Plastic Flat, Retail box, by requires

Data rate : 400G

Wavelength : 1310nm

Distance : 10km

Connector : LC

Temperature : 0 to 70°C

Warranty : 3 years

Contact Now

400Gb/s QSFP-DD LR4 10km SMF Optical Transceiver Duplex LC connector RoHS compliant



Product Features

QSFP-DD MSA compliant
4 CWDM lanes MUX/DEMUX design
100G Lambda MSA 400G-LR4 Specification compliant
Up to 10km transmission on single mode fiber (SMF) with FEC
Operating case temperature: 0 to 70°C
8x53.125Gb/s electrical interface (400GAUI-8)
Data Rate 106.25Gbps (PAM4) per channel
Maximum power consumption 12W
Duplex LC connector
RoHS compliant

Applications

Data Center Interconnect

400G Ethernet

Infiniband interconnects

Enterprise networking


Product Descriptions

This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 10km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 10km fiber transmission.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

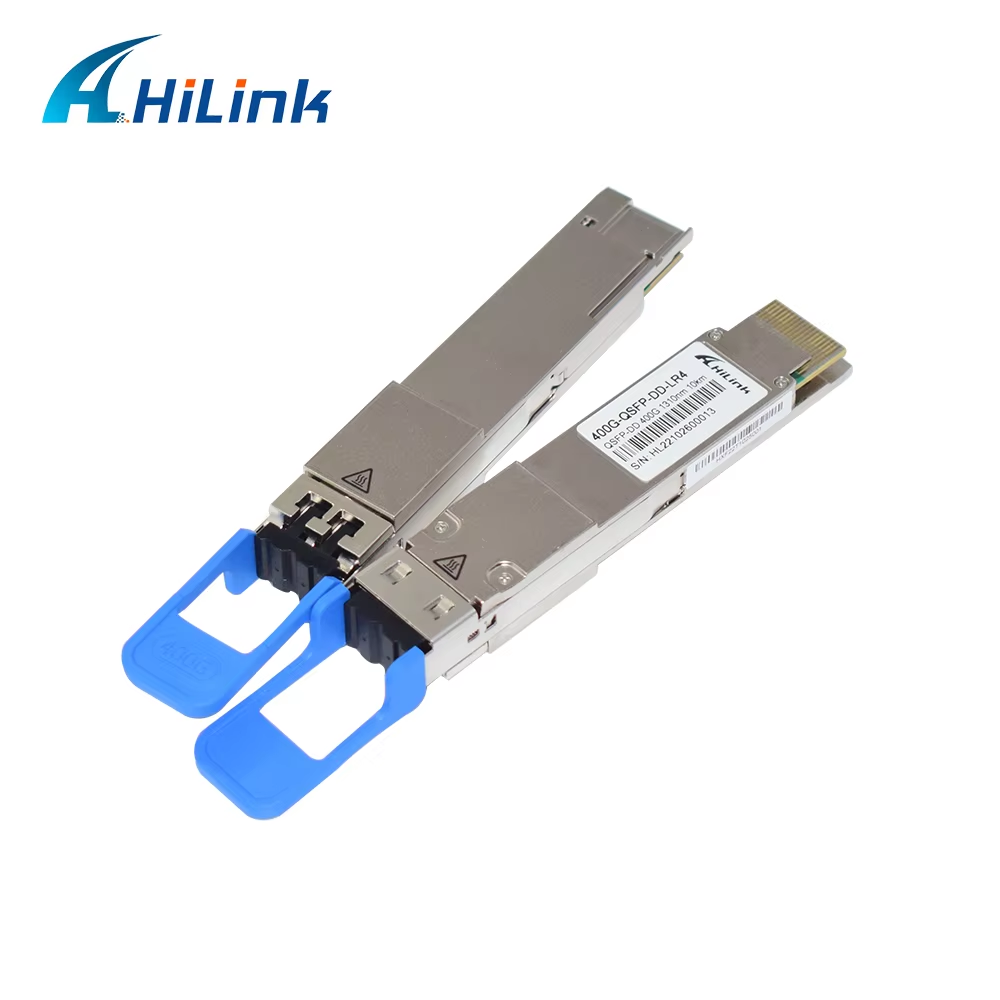

Real Photo

400Gb/s QSFP-DD LR4 10km SMF Optical Transceiver Duplex LC Connector for RoHS Compliant and Long Distance

400Gb/s QSFP-DD LR4 10km SMF Optical Transceiver Duplex LC Connector for RoHS Compliant and Long Distance


Our Service


OEM and ODM:

OEM/ODM order is available.


Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.


What we supply:

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
