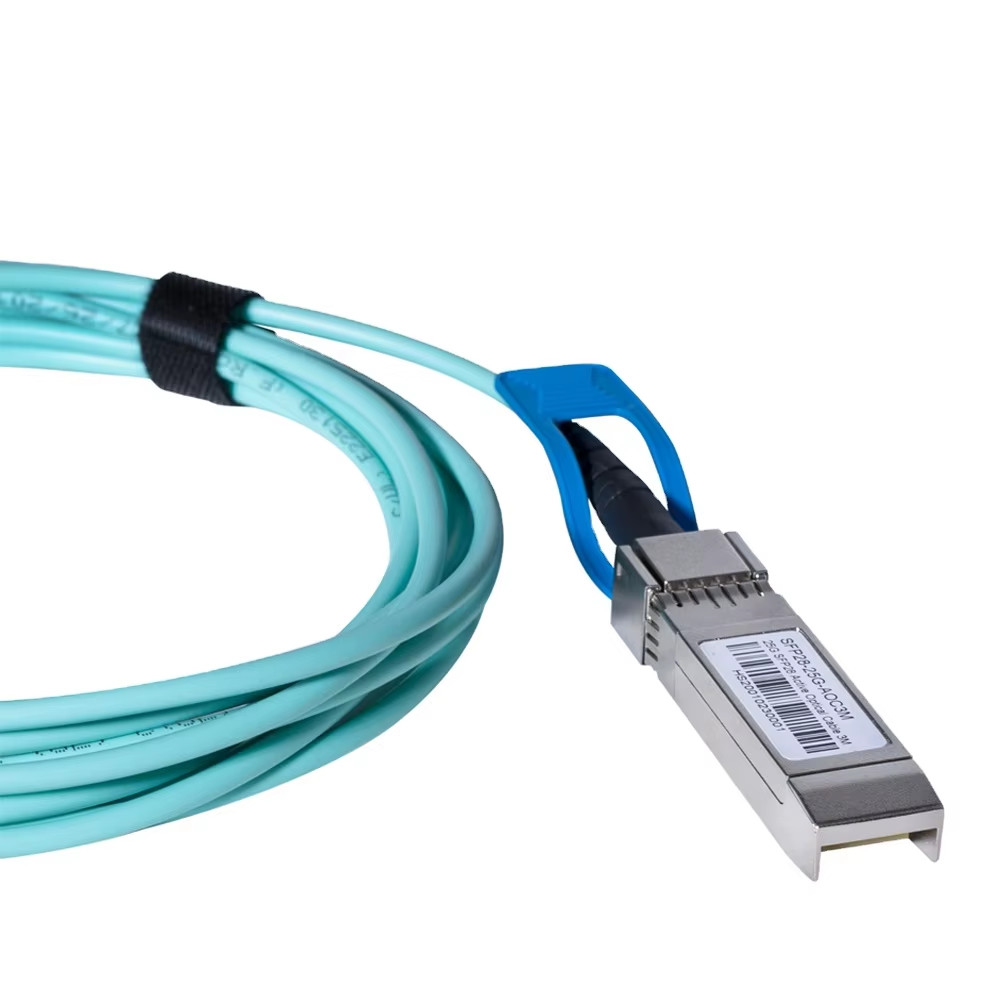

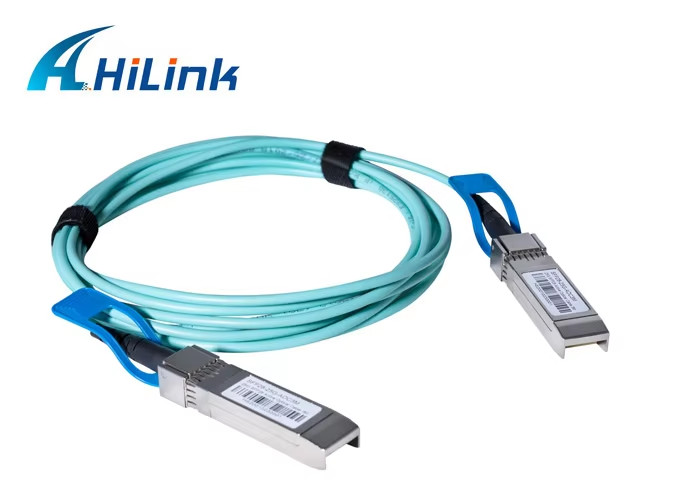

25G SFP28 to SFP28 Active Optical Cable 3M Fiber Optic Cable 25G AOC
Desription:
Hilink's 25G active optical cable can provide an ideal alternative solution for high-speed cable and short-distance SFP28 optical module, it is widely used in high-speed, high-density and low-power data center networks. 25G active optical cable is composed of optical fiber transceivers at both ends and OM3 or OM4 multimode optical fibers of different lengths, which ensure the stability of data transmission and the flexibility of application
Features:
* Compliant to SFF-8431
* Compliant to SFF 8472
* RoHS Compliant
* Transmission data rate up to 25.3Gbit/s
* compliant with SFP + MSA &SFF-8432 standard
* Hot pluggable electrical interface
* Differential AC-coupled high speed data interface
* OM3/OM4 fibre cable of 3M, 5M ,20m, 50M, up to 100m
* 850nm VCSEL array&PIN photo detector array
* Management Interface and digital diagnostic
* Low power consumption
* Support serial ID function through EEPROM
* 3.3V power supply voltage
* Power consumption less than 1W
* Operating case temperature 0°C to +70°C
Applications:
* 25G Ethernet
* Data center and Fiber channel
Shipment & Payment 1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc. 2. Payment: T/T, Western Union, Paypal and so on.
Guarantee:
›& Brand new.
›& OEM/ODM is available. ›& 100% through quality test and aging test. ›& 3 years warranty (From the date of shipment).
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
