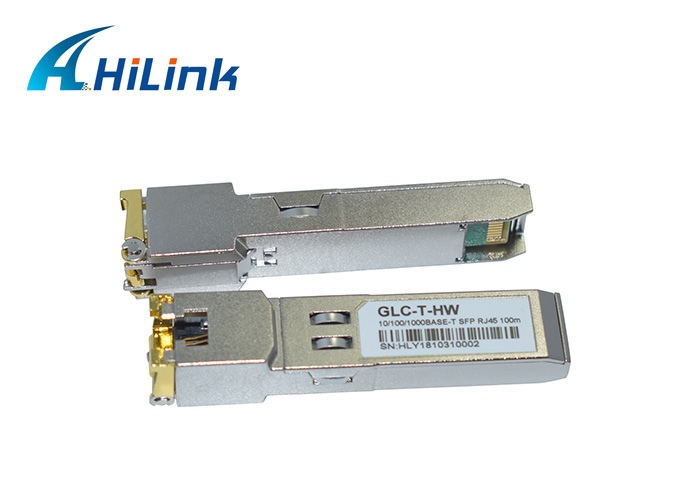

Cisco Compatible Optical Transceiver Module SFP-GE-T 10/100/1000 Base-T Copper RJ45 Connector

Brand Name : HILINK

Model Number : 10/100/1000base-T

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Delivery Time : 1-3 Days

Packaging Details : Blister Packaging, 10pcs/tray

Max Data Rate : 10/100/1000Mbps

Form Type : SFP

Cable Type : Cat 5

Distance : 100m

Connector : RJ45

Operating Temparture : 0-70 ℃

Warranty : 3 years

Compatible : Ciso, Huawei, Alcate-lucent, Mikrotik, HP...

Contact Now

Cisco Compatible SFP-GE-T 10/100/1000Base-T Copper SFP Module RJ45 Connector

Features

Compliant with MSA SFP specification
Compliant with IEEE 802.3 1000BASE-T specification
Supports 1000BASE-X without clock with 1000BASE-X auto-negotiation to copper
Die cast metal housing
Single +3.3V power supply
Serial ID functionality
Bail latch style ejector mechanism
TDR functionality support
Auto MDI/MDIX crossover
Shunt Auto Transformer
Compatible with CAT 5 cable in excess of 100M in length
SFP 1000BASE-X Auto Negotiation Bypass Mode

OEM and ODM

OEM/ODM order is available

Parameter Symbol Min Typ Max Unit
Maximum Supply Voltage Vcc 0 +3.6 V
Storage Temperature TS -40 85 °C
Case Operating Temperature TOP 0 85 °C
Relative Humidity RH 5 95 %
Parameter Symbol Min Typ Max Unit
Supply Voltage Vcc 3.15 3.45 V
Supply Current Icc 180 300 mA



The copper SFP series RJ45

GLC-T 1000base-tx miniGBIC copper
GLC-FE-T 100base 10/100base-tx (100base-tx) copper
GLC-TC 10/100/1000base-tx miniGBIC copper
SFP-GE-TC 1000M (TX DISABLE) SFP copper
SFP-GE-T 10/100/1000M (TX DISABLE)SFP

Mechanical Specification

Cisco Compatible Optical Transceiver Module SFP-GE-T 10/100/1000 Base-T Copper RJ45 Connector

Cisco Compatible Optical Transceiver Module SFP-GE-T 10/100/1000 Base-T Copper RJ45 Connector
