CSR4 MMF 850nm 400M MPO Connector 40G QSFP+ Module

  • 1
  • 2

Brand Name : HILINK

Model Number : HL- QSFP+CSR4

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000pcs/month

Packaging Details : Static bag, Plastic Flat, Retail box, by requires

Data rate : 40G

Wavelength : 850NM

Fiber Connector : LC

Warranty : 3 years

logo : Can customized

Distance : 400m

Contact Now

40G QSFP+ Module MPO connector 40GBASE CSR4 MMF 850nm 400M OM4


Features :

  • 4 independent full-duplex channels
  • Up to 11.2Gbps data rate per channel
  • MTP/MPO optical connector
  • QSFP MSA compliant
  • Digital diagnostic capabilities
  • Capable of over 400m transmission on OM4 multi-mode ribbon fiber
  • Single +3.3V power supply
  • Operating case temperature:0~70C
  • Maximum 1.5W operation power
  • RoHS-6 compliant
  • Compliant with IEEE802.3ba
  • Compliant with QSFP+ MSA:SFF-8436

Applications :

  • 40G Ethernet
  • Infiniband 4X SDR DDR QDR
  • 40G Telecom connections

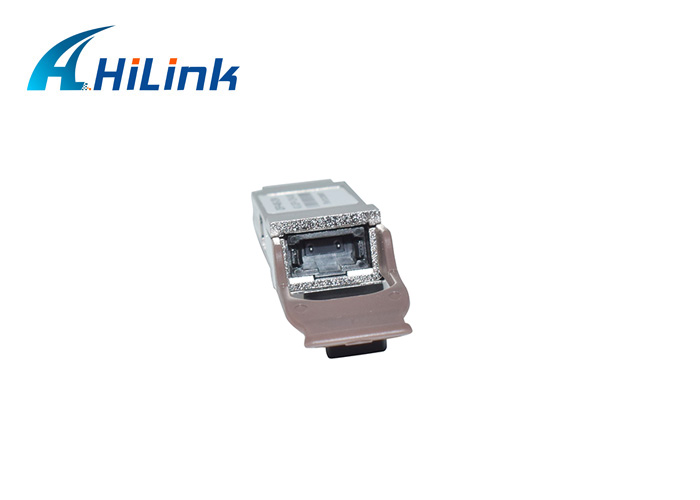

Real pictures:

CSR4 MMF 850nm 400M MPO Connector 40G QSFP+ Module

QSFP Series :

ordering information
Part Number Product Description
HiLink-QSFP-40G-SR4 QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M
HiLink-QSFP-40G-CSR4 QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 300M/400M
HiLink-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HiLink-QSFP-100G-SR4 QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M
HiLink-QSFP-100G-LR4 QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM

Mechanical Dimensions

CSR4 MMF 850nm 400M MPO Connector 40G QSFP+ Module

Company Information:

CSR4 MMF 850nm 400M MPO Connector 40G QSFP+ Module

Our Services:

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. We provide 3 years warranty for all the optical transceivers from the date of shipment. All the optical transceivers have been through functional test and aging test.

OEM/ODM order is available
we can supply products according to your requirements, and design products label for your company.


Related products:
CSR4 MMF 850nm 400M MPO Connector 40G QSFP+ Module



Shipping:
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

What we supply
We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc
