Hilink QSFP 40G SR 850nm Multimode 150M MPT MPO Module

Brand Name : HILINK

Model Number : HLCSR4QSFP

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 2pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 500pcs/month

Packaging Details : Plastic case,Carton

Product Name : 40G SR4 850nm

Data Rate : 40G

Wavelength : 850nm

Fiber Connector : mpo

Warranty : 3years

Dom/Ddm : Yes

Distance : 150m

Contact Now

Hilink QSFP 40G SR Multimode 150M MPT/MPO Module Compatible with OEM Switch

Features

  • Data-rate of 40Gbps operation
  • 850nm VCSEL laser and PIN photodetector
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring:
  • Internal Calibration or External Calibration
  • 500m transmission with 50/125μm MMF
  • 300m transmission with 62.5/125μm MMF
  • Compatible with RoHS,CE,FCC
  • +3.3V single power supply
  • Operating case temperature:
  • Temperature : 0 to +70°C

Applications

  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

40G SFP Transceiver

Part Number Product Description
HL-QSFP-SR4 850nm, 40G, 150m, 0ºC ~ +70ºC
HL-QSFP-CSR4 850nm, 40G, 400m, 0ºC ~ +70ºC
HL-QSFP-LR4

1310nm, 40G, 10km, 0ºC ~ +70ºC

HL-10GQSFP-CA-1M 10G, copper with 1M optical cable

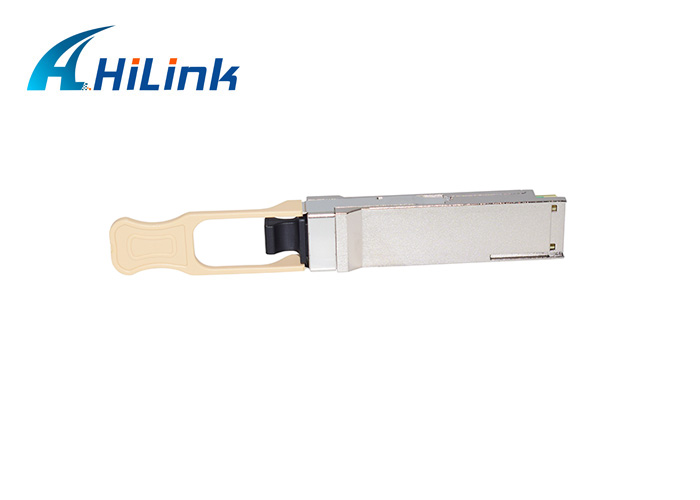

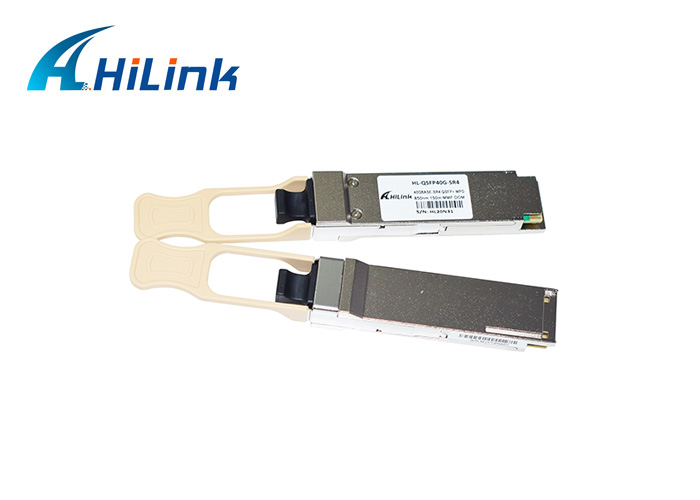

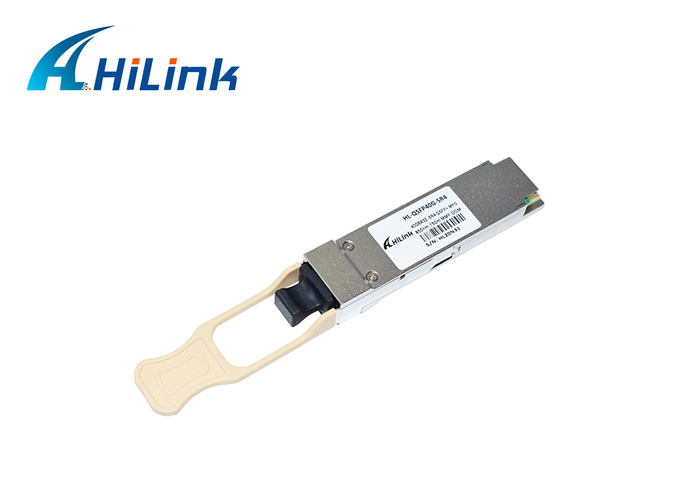

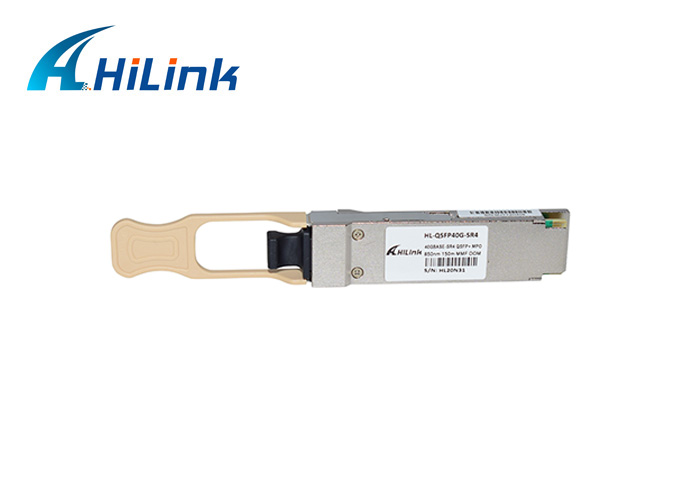

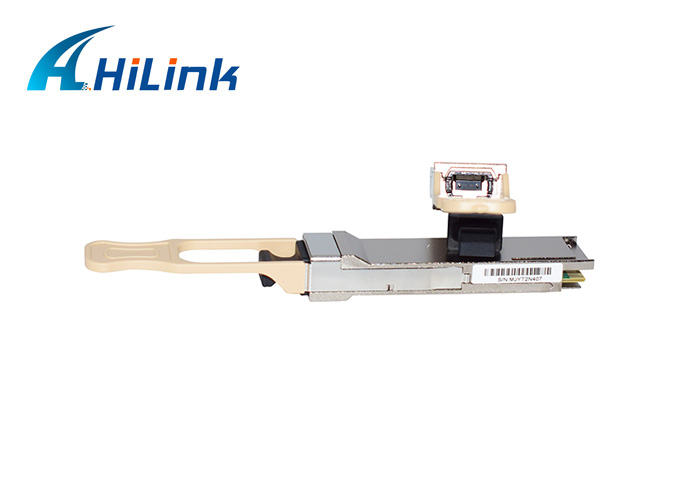

Product picture show

Hilink QSFP 40G SR 850nm Multimode 150M MPT MPO ModuleHilink QSFP 40G SR 850nm Multimode 150M MPT MPO ModuleHilink QSFP 40G SR 850nm Multimode 150M MPT MPO ModuleHilink QSFP 40G SR 850nm Multimode 150M MPT MPO ModuleHilink QSFP 40G SR 850nm Multimode 150M MPT MPO Module
