PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT

Brand Name : HILINK

Model Number : HL-EPON

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 2000pcs/month

Packaging Details : Static bag, Plastic Flat, Retail box, by requires

Data rate : 1.25g

Wavelength : 1490 nm TX / 1310 nm RX

Distance : 20km

Product name : EPON OLT PX20++

Logo : Can be customized

Warranty : 3 years

Tx power : 6dbm

Application : EPON OLT

Contact Now

1.25g EPON OLT PX20++ 20km TX1490/RX1310 SFP module

Hilink EPON OLT SFP (gepon olt sfp) is a compact, hot-pluggable transceiver used for bothtelecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network component vendors.

Features

Compatible IEEE 802.3ah 1000BASE-PX20++ GEPON application
Applied to EPON OLT for a Single Fiber Bi-directional EPON System
SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472

Burst Digital Receiving Signal Strength Indication (RSSI)
Single 3.3V power supply
Operation case temperature -10~70°C for commercial
RoHS-6 compliance

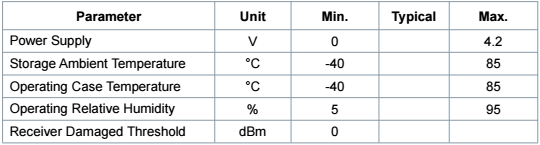

Absolute Maximum Ratings

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT

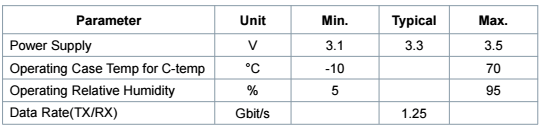

Operating Condition

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT

3 Order Information

Part Number Product Description
EPON OLT SFP 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC recetacle connector, Commercial temperature TX5 ~7db
EPON OLT PX20+ EPON OLT PX20+, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
EPON OLT PX20++ EPON OLT PX20++, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC recetacle connector, Commercial temperature TX5 ~7db
EPON OLT 7dBm EPON OLT PX20++ Enhanced, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 7DB
GPON OLT B+ GPON OLT B+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C+ GPON OLT C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C++ GPON OLT C++, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT 7dBm GPON OLT C++ Enhanced, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP+, BIDI SC/UPC Receptacle, Commercial Temperature
GPON ONU SFP GPON ONU SFP, G.984.5, 20km, Tx 1310nm 1.244G, Rx 1490nm 2.488G, SFP form-factor, SC/UPC receptacle connector, Industrial temperature, BEN low active
EPON ONU SFP EPON ONU SFP, G.984.2, 20km, Tx 1310nm 1.25G, Rx 1490nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
GPON ONU STICKER B+ SFP ONU SFP MAC/ Tx1310/Rx1490 DFB+APD 1.25G/2.5G

products picture

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLTPX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLTPX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT

Our Related Products

As we have varies kinds of products,if you can't find the correct item you need,please send us an inquiry.We will reply shortly.

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT

Company Information

PX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLTPX20++ 20km PON SFP Optical Transceiver Module Hilink 1.25g EPON OLT

Packaging & Shipping

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 2-7 work days.

Our Services

OEM/ODM order is available

we can supply products according to your requirements, and design products label for your company.

FAQ

1.Do you sell second-hand products?

No.All our products are brand new,we never use second-hand components.

2.What devices can your products compatible with?

Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

3.Do your products come with warranty?

Yes,We provide 3 years warranty for all our products from the date of shipment.

4.What’s the MOQ?

To achieve customer`s satisfaction,we accept sample order,even one Piece.

5.What payment terms do you accept?

T/T,Paypal,Western Union are acceptable.

6.How about Shipment?
Generally we support the International Express: DHL, FedEx,EMS,TNT, UPS and so on. It

takes 3-7 days.

7.How to get the Tracking information?
Our sales staff that you placed your order with,he/she will provide you with tracking information by email and over the phone.
