Hilink 100G QSFP28 LR4 10KM LC Connector Single Mode Fiber Optic Module

Brand Name : Hilink

Model Number : 100G QSFP28 LR4 10KM

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1 pieces

Price : Need to negotiate

Payment Terms : T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance

Supply Ability : 2000 Pieces/Week

Delivery Time : 5-8 working day

Packaging Details : Plastic box+Carton

Condition : Brand new

Wavelength : 1310nm

Data transfer rate : 100Gbps

Warranty : 3 years

CE RoHS : Compliant

Lead time : 2-4 working days

DDM function : yes

package style : Plastic box+Carton

OEM/ODM : yes

Connector : LC

Contact Now

Hilink 100G QSFP28 LR4 10KM LC Connector Single Mode Fiber Optic Module

Product Description

Features

Up to 10km reach for G.652 SMF Cooled 4x25Gb/s LAN WDM DML TOSA with optical MUX

4x25G Electrical Interface Single +3.3V power supply DDM function implemented

2 Wire Serial Interface for modulemanagement

Maximum power dissipation<4.5W Operating temperature range: 0℃ ~ 70℃

Compliant with RoHS6

Applications

Compliant with QSFP28 MSA(SFF-8665 v1.9)

Compliant with IEEE 802.3ba

100GBASE-LR4 Ethernet

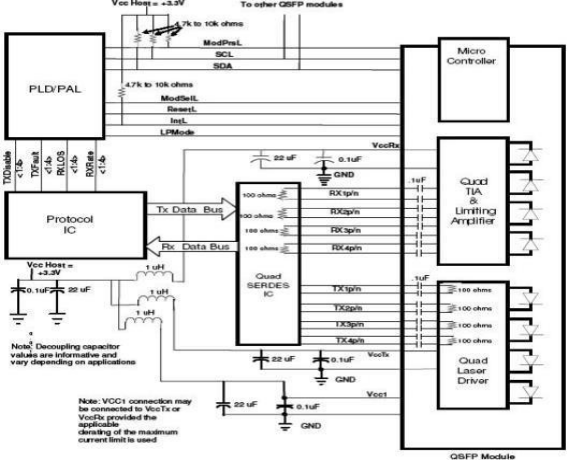

Typical Application Circuit

Hilink 100G QSFP28 LR4 10KM LC Connector Single Mode Fiber Optic Module

Optical Characteristics (Tc=0 oC to 70 oC and Vcc= 3.14 to 3.46)

Parameter Symbol Unit Min Typ Max Notes
Transmitter(per Lane)
Signaling Speed per Lane GBd 25.78125 ± 100 ppm
Lane Wavelength (range):

1294.53 – 1296.59

1299.02 – 1301.09

1303.54 – 1305.63

1308.09 – 1310.19
L0
L1 nm
L2
L3
Total Average Launch Power Pout dBm 10.5
Transmit OMA per Lane TxOMA dBm -5 5
Average Launch Power per Lane TXPx dBm -4.3 4.5
Optical Extinction Ratio ER dB 3.5
Side-Mode Suppression Ratio (SMSR) SMSR dB 30

Average launch power of OFF transmitter, per

lane

 dBm -30
Relative Intensity Noise RIN dB/Hz -128
Optical Return Loss Tolerance dB 20
Transmitter Reflectance dB -12

Transmitter Eye mask definition

{X1,X2,X3, Y1,Y2,Y3}

{0.25,0.4,0.45,0.25,0.28,0.4}
Receiver(per Lane)
Signaling Speed per Lane GBd 25.78125 ± 100 ppm
Lane Wavelength (range):

1294.53 – 1296.59

1299.02 – 1301.09

1303.54 – 1305.63

1308.09 – 1310 19
L0
L1 nm
L2
L3
Average Receiver Sensitivity per Lane Rxsens dBm -8.6 dBm
Average Received Power per Lane RXPx dBm -11 3.4
Damage Threshold Per Lane Pmax dBm 3.4
Return Loss RL -26
Vertical eye closure penalty, per lane dB 1.9

Receiver electrical 3dB upper cutoff

frequency,per lane

 GHz 31
LOS De-Assert LOSD dBm -13
LOS Assert LOSA dBm -30
LOS Hysteresis dB 0.5 1.5 5

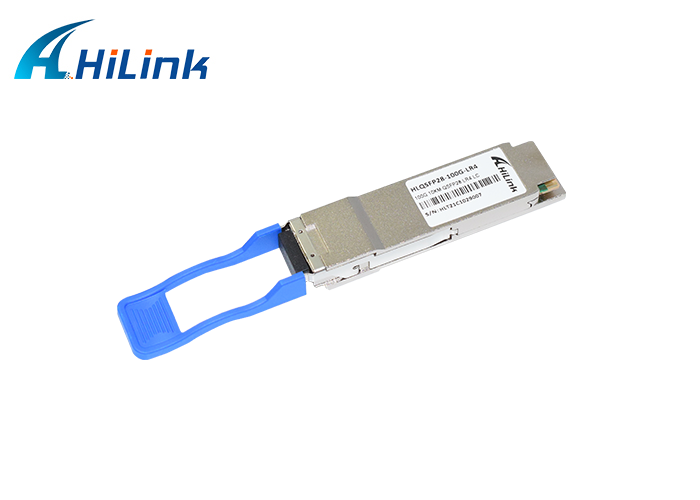

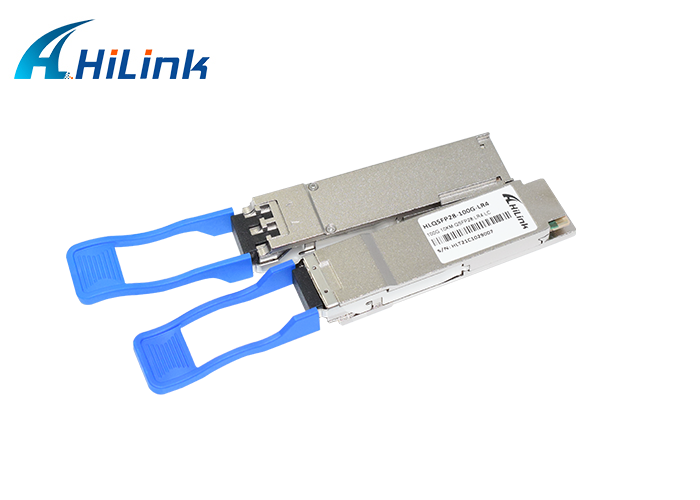

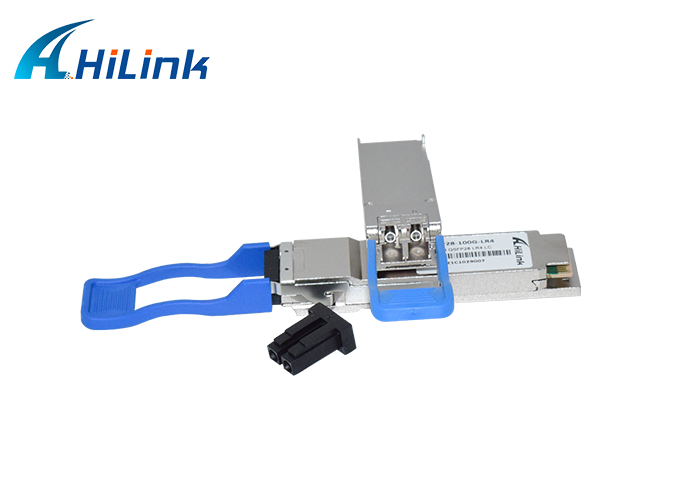

Real Picture

Hilink 100G QSFP28 LR4 10KM LC Connector Single Mode Fiber Optic Module

Hilink 100G QSFP28 LR4 10KM LC Connector Single Mode Fiber Optic Module

Hilink 100G QSFP28 LR4 10KM LC Connector Single Mode Fiber Optic Module

Package & Shipping

We provide safe and reliable packaging:Plastic box+Carton
Delivery time:2-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
