Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission

Name: Mini 10G OEO Converter 10G SFP TO SFP Media Converter For Long Haul Transmission
Brand: Hilink
Price: 1 USD

Quality Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission wholesale

Brand Name : Hilink

Model Number : HL-OEO-10G

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200PCS/month

Packaging Details : Plastic packaging, Carton

Product Name : Mini 10G OEO Converter

Interface Type : SFP+ to SFP+/ XFP to XFP

Working Status : Rackmounted / standalone

Distance : up to 80KM

Power Consumption : ≤4W

Operating Temperature : 0 to +50℃

Contact Now

Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter

for Long Haul Transmission

Product Description

Hilink's 10G SFP+ to SFP+ fiber to fiber converter is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed. 3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.

Features

* Supports connections up to 10Gbit/s data rate
* Functions as a fiber mode converter or fiber repeater for long distance transmission
 * For use with SFP+ module and supports hot-plugging
 * Transmission distances from 550m to 80km
 * Available with internal or external power supply
 * Can be installed into a media converter chassis
 * 3R Repeater
 * Support Jumbo Frame
 * Transparent Transport and very low delay
 * Support ITUT prescribed DWDM/CWDM wavelength
 * Support hot plugging
 * Support 2U Rack (16 channel) and standalone use
 * Full State Led display
 * Easy installation
 * Connection between fiber to fiber 10Gbps equipment function as fiber mode converter, or as fiber repeater for long distance transmission

Performance Data	Technical Indexes
Equipment function	3R Repeater
Transmission Speed	8.5Gb/s-11.7Gb/s
Protocols	8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS
Interface Type	SFP+ to SFP+/XFP to XFP
Transmission Distance	SFP+ module: up to 80km
Maximum Packet Forwarding Rate	14,880,950/S
power requirement	Rack-mountable : AC 85 ～ 220V OR DC -48V Standalone: AC 110~220V OR -48V OR 5V 2A Power consumption: ≤4W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing )
Dimension	30×100×140mm(external power)

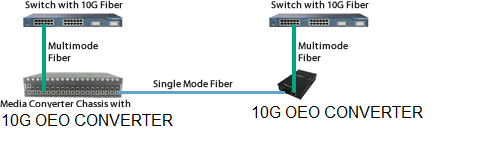

Applications

Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission
