25G WDM 1270/1330nm 10KM SMF Transceiver SFP28 BIDI LR with DDM CDR
Hilink HL25G10x-xxTransceiver is intended for 10km reach service from 24.33Gb/s to 25.78Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.
The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.
Features
-
Operating data rate up to 25.78Gbps
-
Up to 10km transmission distance
-
High sensitivity PIN photodiode and TIA
-
Rate Adaptation
-
LC single connector
-
Hot pluggable 20pin connector
-
Low power consumption <1.2W
-
Single +3.3V±5% power supply
-
Compliant with SFF-8472
-
Fully RoHS Compliant
-
Case operating temperature: Commercial: 0°C to +70°C Industrial: -40°C to +85°C
Specifications
| Item No. | HL-SFP28-BX-10 | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 25Gbps |
| Wavelength | 1270/1330nm | Max Cable Distance | 10KM |
| Interface | LC Simplex | Optical Components | DML + PIN |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
| Parameter | Symbol | Unit | Min | Typ | Max | Note |
| Transmitter |
| Center Wavelength | λ | nm | 1260 | 1270 | 1280 | |
| Center Wavelength HLBI25G10x-32) | λ | nm | 1320 | 1330 | 1340 | |
| Average Output Power | Pav | dBm | -4 | | 4 | |
| Spectral Width (-20dB) | s | nm | | | 1 | |
| Extinction Ratio | ER | dB | 3.5 | | | |
| Side Mode Suppression Ratio | SMSR | dB | 30 | | | |
| Average Launch Power of OFF Transmitter | POFF | dBm | | | -30 | |
| Relative Intensity Noise | RIN | dB/Hz | | | -128 | |
| Receiver |
| Center Wavelength ( HLBI25G10x-23) | λC | nm | 1320 | 1330 | 1340 | |
| Center Wavelength ( HLBI25G10x-32) | λC | nm | 1260 | 1270 | 1280 | |
| Receiver Sensitivity(OMA) | RSENSE | dBm | | | -12 | 1 |
| Receiver Overload (OMA) | Pmax | dBm | 2 | | | |
| Receiver Reflectance | | dB | | | -12 | |
| LOS Assert | LOSA | dBm | -30 | | | |
| LOS De-Assert LOS | LOSD | dBm | | | -17 | |
| LOS Hysteresis | | dB | 0.5 | | | |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
- 25G BASE-LR Ethernet
- CPRI Option 10/eCPRI

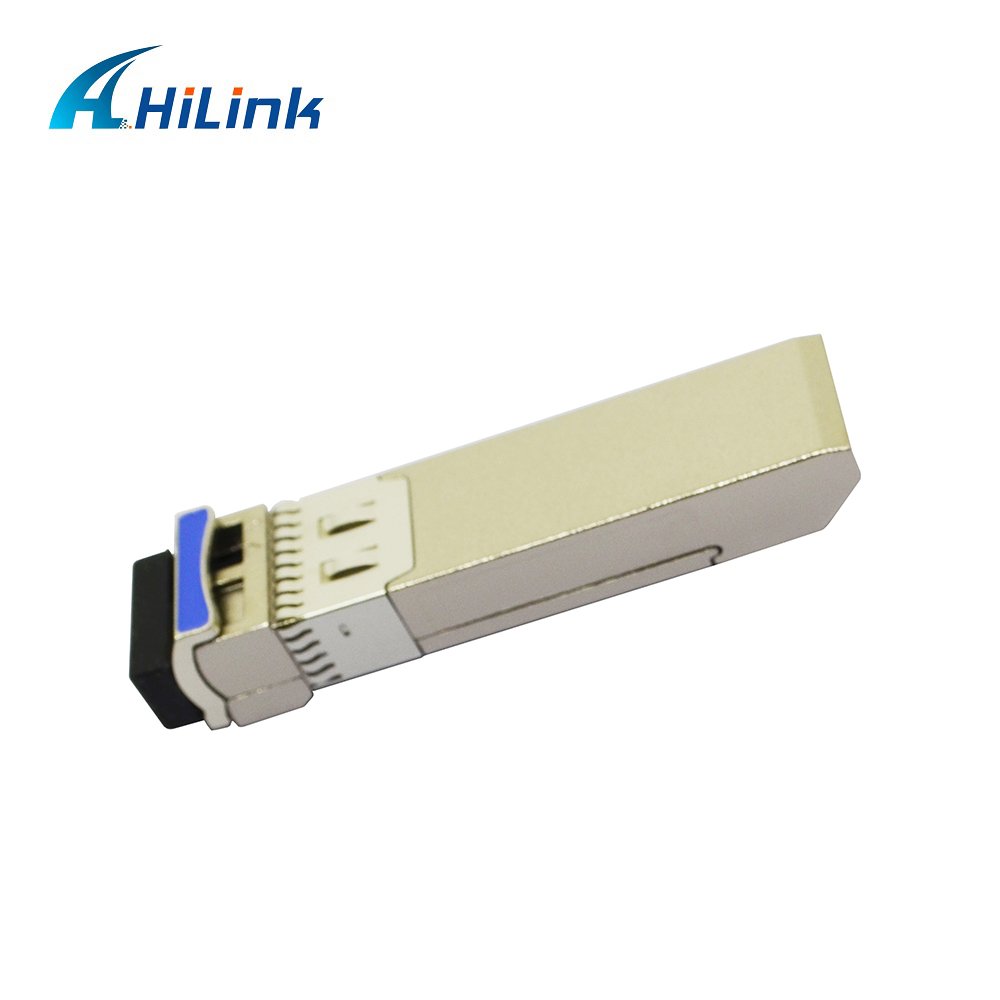

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
