Compatible Brand SFP 2KM QSFP56-200G-FR4 2KM LC 1310nm SFP Transceiver
GENERAL
The HiLink 200G QSFP56 FR4 is a 4×50Gbps singlemode fiber, hot pluggable optical transceiver.HiLink’s unique SystemOnGlassTM (SOGTM) technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 200Gbps data link in a compact QSFP56 footprint. The optical connectivity is based on two Singlemode Fiber (SMF) LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 50Gbps Coarse Wavelength Division Multiplex (CWDM) channels, whose wavelengths are in the 1310nm range. The 200G QSFP56 FR4 transceiver is designed for applications with a reach up to 2km and with the use of FEC.
The HiLink transceiver is based on proprietary HiLink PLC technology, using surface mounted opto-electronic devices with no free space elements. The unique design of the optical engine facilitates unparalleled compactness while maintaining Telcordia robustness.
PRODUCT FEATURES
Compliant with IEEE Std 802.3bs
Compliant with 200G-FR4 optical specifications
Compliant with SFF-8679
Compliant with CMIS4.0 Management interface specifications
4x53.125Gb/s electrical interface (200GAUI-4)
Up to 2km transmission on single mode fiber (SMF) with FEC
Single +3.3V power supply
Case temperature range: 0 ~ +70℃
Maximum power consumption 7W
Duplex LC connector
RoHS complaint
APPLICATIONS
200GBASE-FR4 Ethernet links
Data centers
RELATED PRODUCT
| QSFP28-100G-SR4 | 100GBASE-SR4 850nm 100M LC |
| QSFP28-100G-LR4 | 100GBASE-LR4 1310nm 10KM LC |
| QSFP28-100G-ER4 | 100GBASE-ER 1310nm 40KM LC |
| QSFP28-100G-ZR4 | 100GBASE-ZR 1310nm 80KM LC |
| QSFP56-200G-SR8 | 200GBASE-SR 850nm 100M MPO |
| QSFP56-200G-FR4 | 200GBASE-FR4 1310nm 2KM LC |

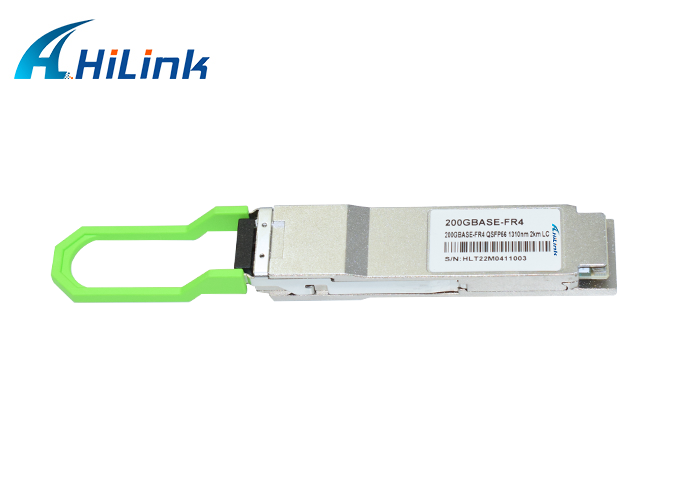

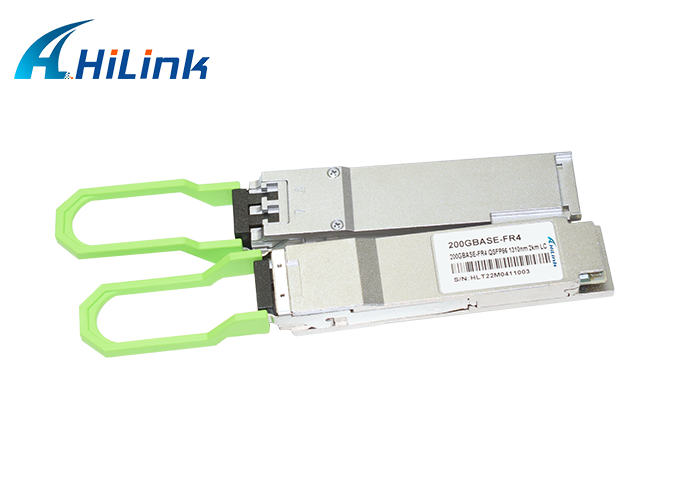

PRODUCT PICTURE SHOW
