Hilink 3 Years Guarantee 2.5G SFP RJ45 Copper 100M SFP Fiber Module
SFP-2.5GBASE-T-A Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 2.5Gbase-T / 1000base-T/100base-T standards as specified in IEEE Std 802.3 . SFP-2.5GBASE-T-A uses the SFP's RX_LOS(must be pulled up on host) pin for link indication
Product Description
Features
- Support 2.5Gbase-T / 1000base-T/ 100base-T on line port
- Support 2.5Gbase-X on host port
- Hot-pluggable SFP footprint
- Compact RJ-45 connector assembly
- RoHS compliant and lead-free
- Single +3.3V power supply
- 2.5 Gigabit Ethernet over Cat 5 cable
- Ambient Operating temperature: 0°C to +70°C
- Power dissipation <2W
Digital Diagnostic Specifications
All high-speed signals are AC-coupled internally.
| High-Speed Electrical Interface, Transmission Line-SFP |
| Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
| Tx Output Idmpeance | Zout,TX | | 100 | | Ohm | Differential, for all frequencies between 1MHz and 125MHz |
| Rx Input Impedance | Zin,RX | | 100 | | Ohm | Differential, for all frequencies between 1MHz and 125MHz |
| High-Speed Electrical Interface, Host-SFP |
| Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
| Differential data input swing | Vinsing | 125 | | 750 | mV | Single ended |
| Differential data output swing | Voutsing | 400 | | 750 | mV | Single ended |
| Rise/Fall Time | Tr,Tf | 30 | | | psec | 20%-80% |
| Tx Input Impedance | Zin | | 100 | | Ohm | Differential |
| Rx Output Impedance | Zout | | 100 | | Ohm | Differential |

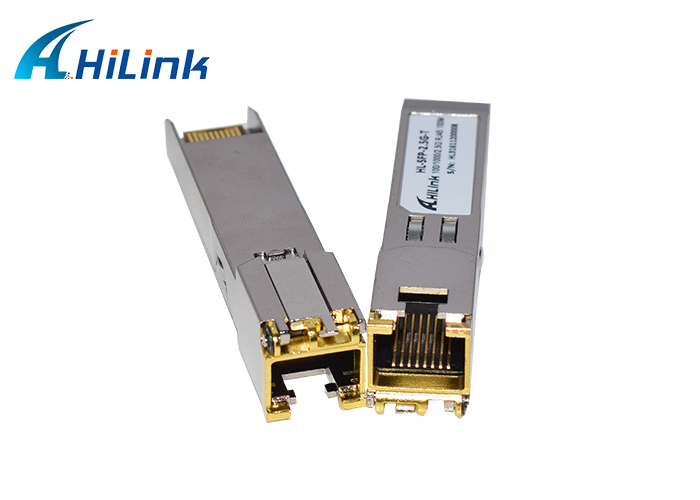

Real Picture
Warranty
We promise all the advertised optical transceivers are brand new with new components and parts.
We absolutely never use old and refurbished materials.
All the optical transceivers have been through functional test and aging test.
We provide 3 years warranty for all the optical transceivers from the date of shipment.Shipment
FAQ
1. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable, We do not have MOQ, even 1pc sample order is available.
2. What is the lead time?
For usual products. We keep stock, could ship 1-3 days after receiving payment. For big quantity and special products. Please check lead time with our sales representative.
3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
4. What is your payment terms?
Usually, our payment term: T/T, West Union or Paypal.
5. What is your warranty time
3 years’ warranty for all products shipped from us.
6. How to place an order?
Please send your inquires to sales or call our sales hotline: +86-159 1717 4650 Our sales representative will contact you within 24 hours.
7. Could I use our own logo and label?
Yes, we could provide a OEM service and make the products with your own label.
