1.25G 1000BASE DWDM SFP 120KM HL-DWSFP-C40-120 Optical Transceivers
Product Description
HL-DWSFP-C40-120 Enhanced Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and SFF-8472. The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the EML laser and the APD .The module data link up to 120KM in 9/125um single mode fiber. It offers a simple and convenient way to interface PCBs to single mode fiber optic cables in Dense Wavelength Division Multiplexing (DWDM) applications. It is a high performance, cost effective module for serial optical data communication applications.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
Features
Supports up to 1.25Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled EML transmitter and APD-TIA receiver
Applicable for 120km SMF connection
Low power consumption, < 1.2W
100GHz ITU Grid, C Band
Digital Diagnostic Monitor Interface
Optical interface compliant to ITU-T 694.1& G.698.1
Electrical interface compliant to SFF-8431& SFF-8432
Operating case temperature:
Commerical:0 to 70 °C Industrial:-40~85°C
Application
C Band DWDM networks
SONET/SDH networks
Fiber channel
Gigabit Ethernet
DWDM Series Transceiver
| DWDM SFP (1.25G) |
| DWDM SFP (1.25G) | 1.25G | 15XX.XX | 40KM | DWDM SFP | 0~70 |
| DWDM SFP (1.25G) | 1.25G | 15XX.XX | 80KM | DWDM SFP | 0~70 |
| DWDM SFP (1.25G) | 1.25G | 15XX.XX | 120KM | DWDM SFP | 0~70 |
| DWDM SFP (1.25G) | 1.25G | 15XX.XX | 160KM | DWDM SFP | 0~70 |
| DWDM SFP (10G) |
| DWDM SFP+ (10G) | 10G | 15XX.XX | 40KM | DWDM SFP+ | 0~70 |
| DWDM SFP+ (10G) | 10G | 15XX.XX | 80KM | DWDM SFP+ | 0~70 |
| DWDM XFP (10G) |
| DWDM XFP (10G) | 10G | 15XX.XX | 40KM | DWDM XFP | 0~70 |
| DWDM XFP (10G) | 10G | 15XX.XX | 80KM | DWDM XFP | 0~70 |

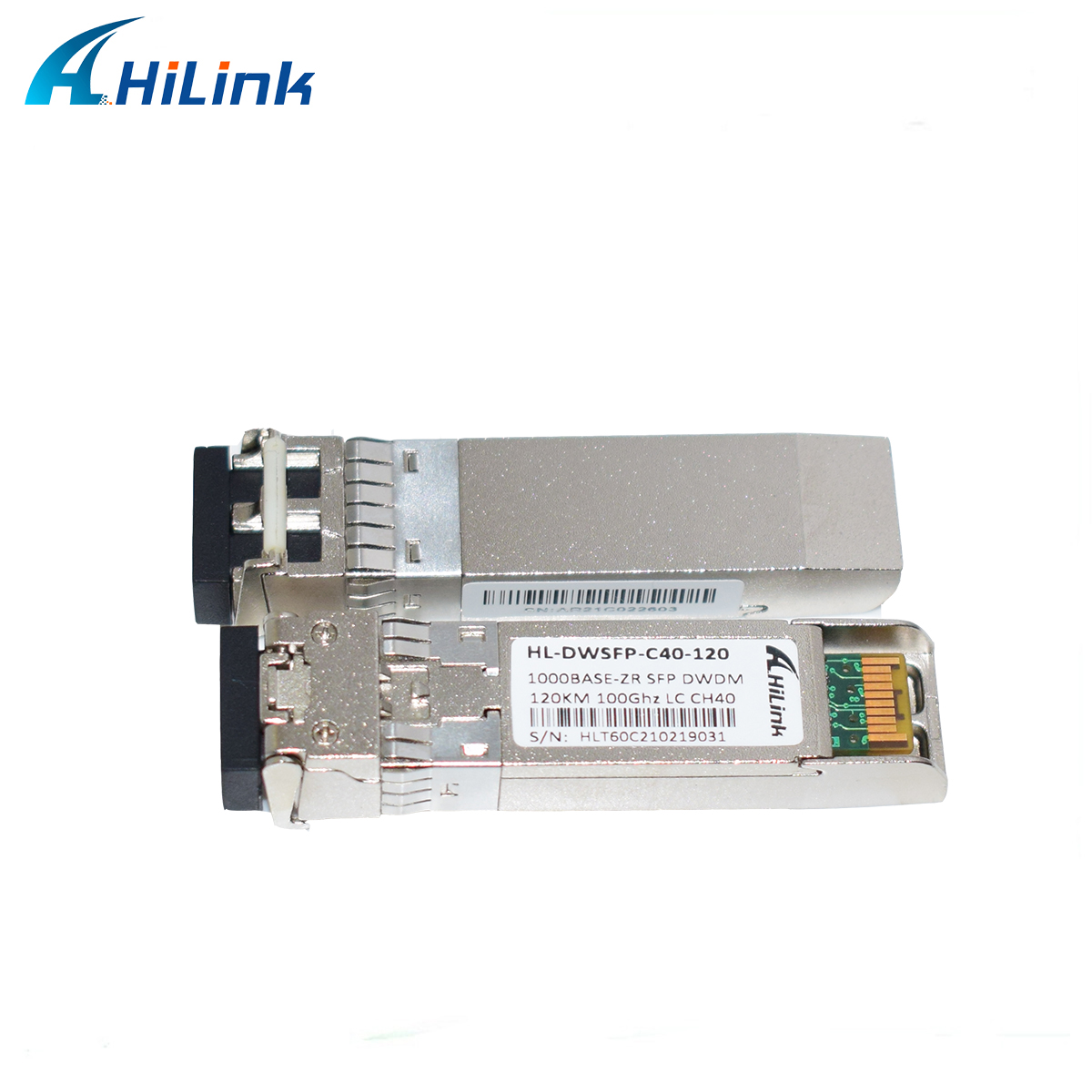

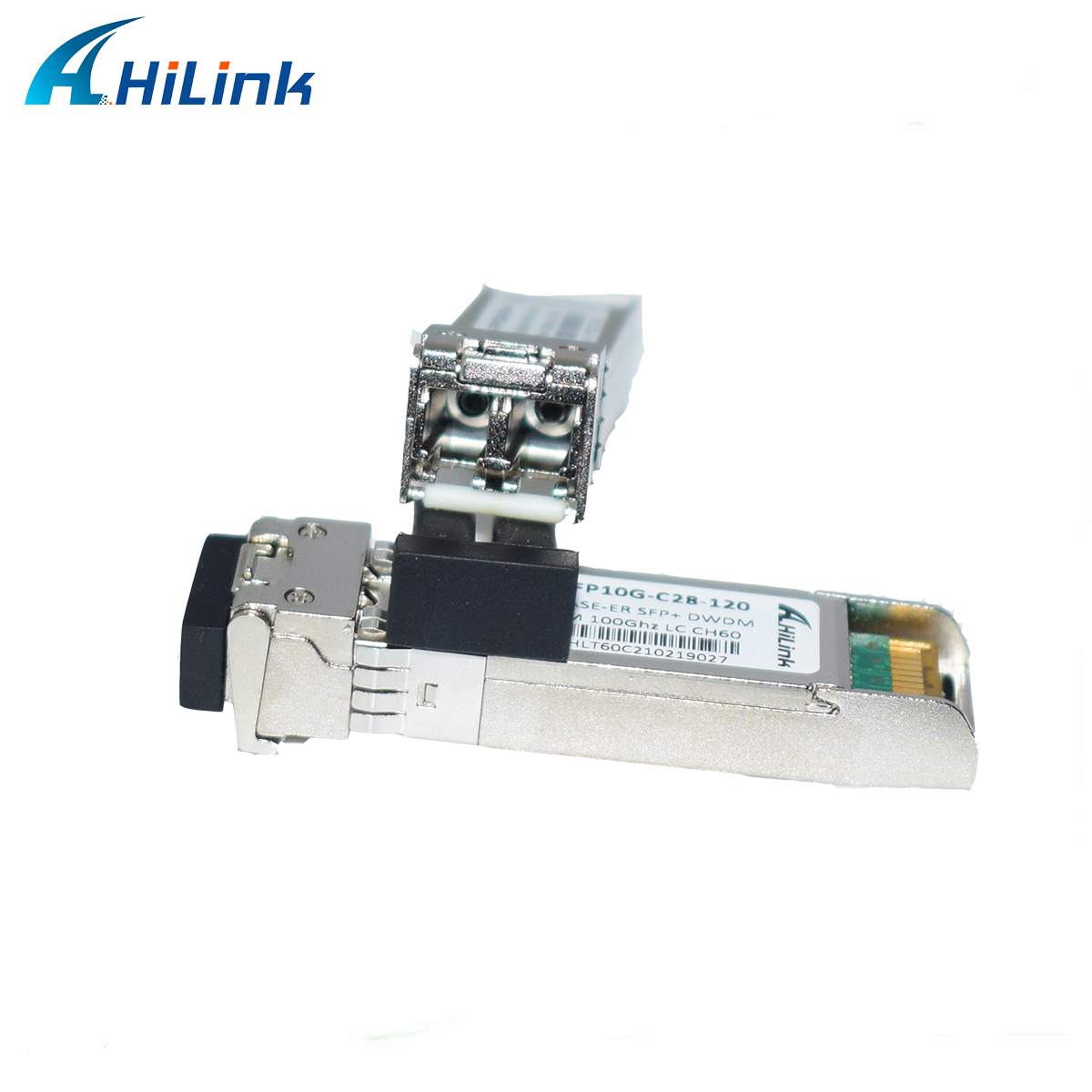

Product Picture
