10G 1310nm 10KM XFP Optical Module RoHS Compliant Dual LC 10GB XFP
Hilink HLXP311XL-C(I)D10 Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification, now available with Commerical Temperature Range of Operation(0 °C to 70°C) and Industrial Temperature Range of Operation (-40°C to +80°C). They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae, 10G Fibre Channel and 10G CPRI request.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
| Item No. | HL-XFP-LR-10 | Vendor Name | Hilink |
| Form Type | XFP | Max Data Rate | 11.3Gb/s |
| Wavelength | 1310nm | Max Cable Distance | 10KM |
| Interface | LC Duplex | Optical Components | DFB+PIN |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Features
-
Supports 9.95 to 10.5Gb/s bit rates
-
Duplex LC connector
-
Hot-pluggable XFP footprint
-
Uncooled 1310nm DFB laser ,PIN photo-detector
-
Applicable for 10km SMF connection
-
Low power consumption, <1.5W
-
Digital Diagnostic Monitor Interface
-
No Reference Clock required
-
Operating case temperature: Commerical:0 to 70 °C
Industrial:-40 to 80°C
Specifications
| Parameter | Symbol | Unit | Min | Typ | Max | Note |
| Transmitter |
| Center Wavelength | λ | nm | 1260 | 1310 | 1355 | |
| Average Output Power | Pave | dBm | -6 | | 1 | 1 |
| Optical Modulation Amplitude | POMA | dB | -4.8 | | 0 | OMA |
| Extinction Ratio | ER | dB | 4.5 | 5.5 | | |
| RMS spectral width | Δλ | nm | | | 0.45 | |
| Dispersion penalty | TDP | dB | | | 3.2 | |
| Relative Intensity Noise | RIN | dB/Hz | | | -130 | |
| Tx Jitter | Tj | Compliant with IEEE 802.3ae | |
| Receiver |
| Center Wavelength | λC | nm | 1260 | | 1620 | |
| Receiver Sensitivity (ER=4) | PSEN1 | dBm | | | -12.6 | 2 |
| Receiver Sensitivity (ER=6) | PSEN2 | dBm | | | -14.4 | 2 |
| Receiver Overload | Pmax | dBm | 0.5 | | - | |
| LOS Assert | Pa | dBm | -30 | | | |
| LOS De-Assert LOS | Pd | dBm | | | -14 | |
| LOS Hysteresis | Pd-Pa | dB | 0.5 | | | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured w at 10.3125G; BER<10-12; 231 – 1 PRBS.
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications

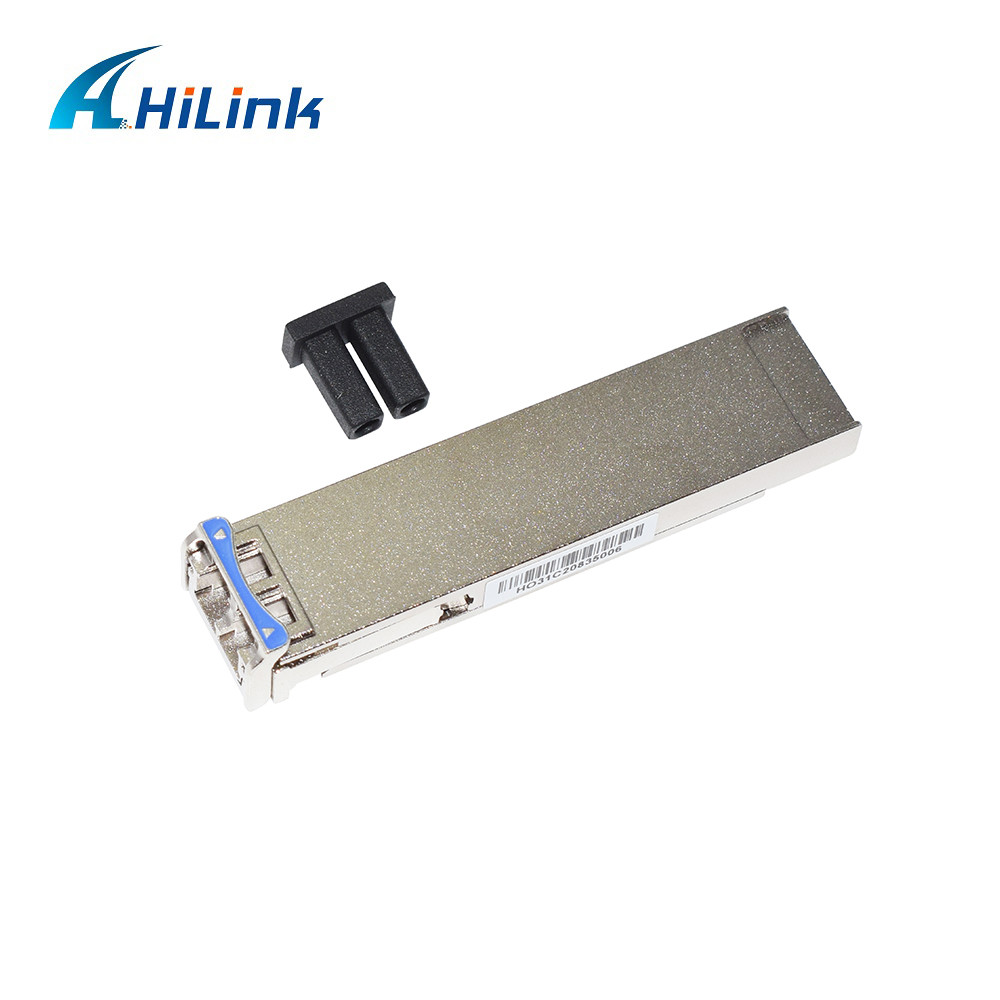

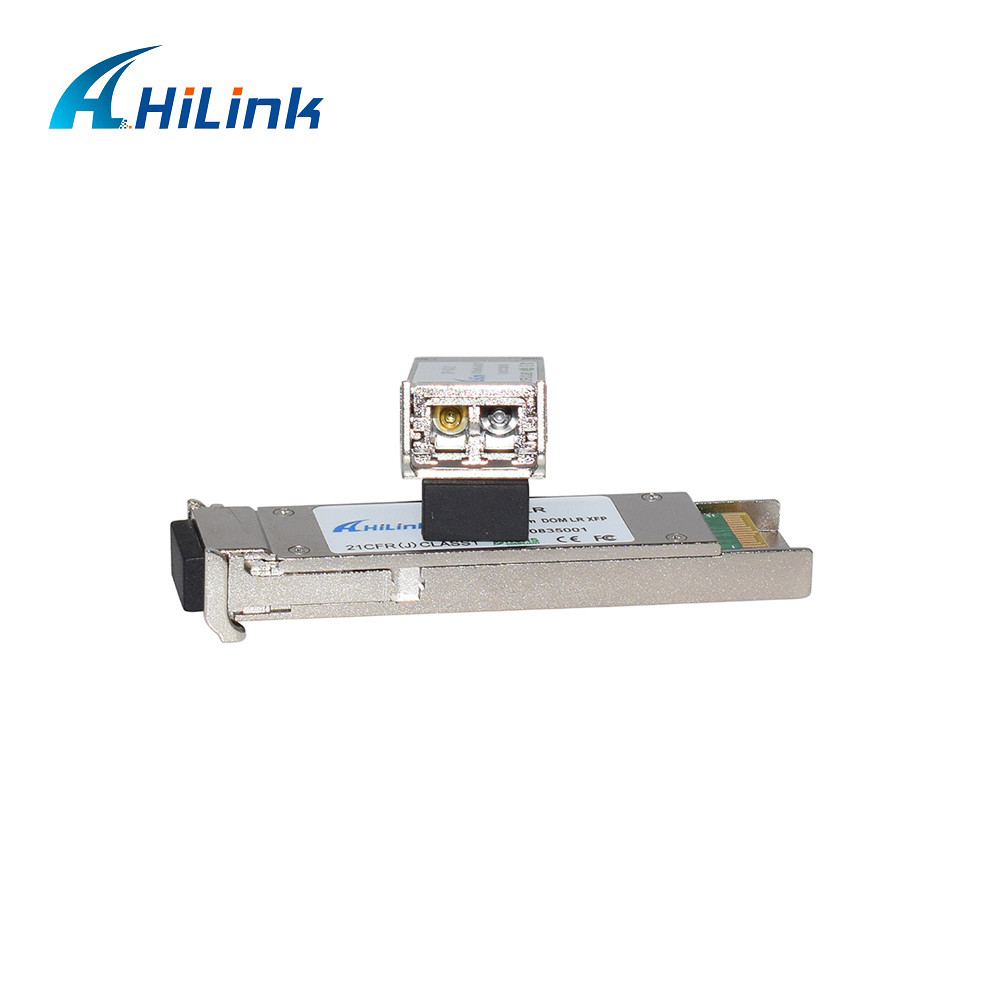

Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
