Hilink 10G WDM ZR 80KM SMF 1490NM /1550NM EML+APD Digital Diagnostic Monitor Interface
Product Description
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1470 | 1490 | 1510 | nm | |
| 1530 | 1550 | 1565 | |
| Ave. output power (Enabled) | PAVE | 0 | | 5 | dBm | 1 |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Extinction Ratio | ER | 9 | | | dB | |
| RMS spectral width | Δλ | | | 1 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 50 | ps | |
| Dispersion penalty | TDP | | | 3.2 | dB | |
| Relative Intensity Noise | RIN | | | -128 | dB/Hz | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | λ | 1530 | 1550 | 1565 | nm | |
| 1470 | 1490 | 1510 | |
| Receiver Sensitivity | PSEN1 | | | -22 | dBm | 2 |
| Sensitivity over 80Km fiber | PSEN2 | | | -20 | dBm | 2 |
| Overload | PAVE | | | -7 | dBm | |
| LOS Assert | Pa | -35 | | | dBm | |
| LOS De-assert | Pd | | | -24 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER=9; BER<10-12; 231 – 1 PRBS.
Product Features
Supports 9.95 to 11.3Gb/s bit rates
●Simplex LC Connector
●Hot pluggable SFP+ footprint
●Cooled 1490nm EML transmitter, 1550nm APD receiver
●Cooled 1550nm EML transmitter, 1490nm APD receiver
●Applicable for 80km SMF connection
●Low power consumption, < 1.5W
●Digital Diagnostic Monitor Interface
●Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
●Electrical interface compliant to SFF-8431
●Operating case temperature:
Commerical:0 to 70 °C

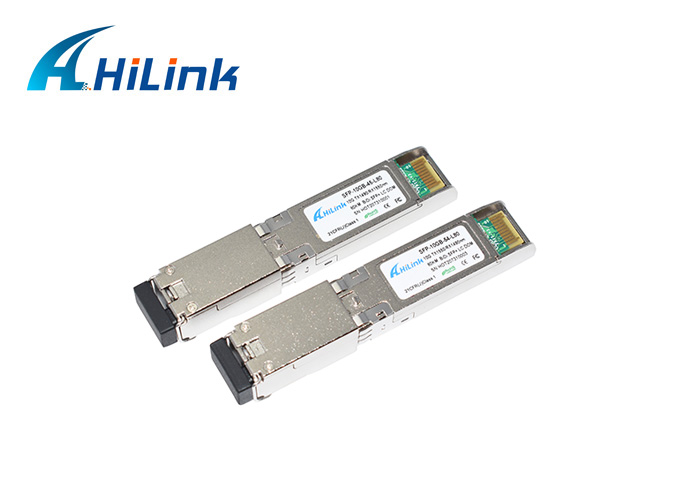

Real Picture
Package & Shipping
We provide safe and reliable packaging:Plastic box+Carton
Delivery time:3-5 working days
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
FAQ
Q: Do you provide samples? It is free or extra?
A: yes, we we provide sample, need to charge, if you have make bulk order next time, we will return sample fee.
Q: What is your MOQ and lead time?
A: MOQ 1 sample is avaliable.
Lead time, depends on the product quantity, actually sample lead time need1-3 days.
Q: What is yout term of payment?
A: We can accept T/T, Paypal,Wechat,.Alipay.other payment term, we can negotiate.
Q: Could i use our own logo and label?
A: Yes, we could provide OEM Service and make the products with your own label.
Hilink Advantage
--Hilink establish in 2007,Specialize in this field with around 10-year experience.
--Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
--We provide 3 years warranty for all our products from the date of shipment.
--We also provide DWDM CWDM Mux/Demux with optical solutions.
