100G/200G/400G CFP2 DCO Pluggable Optical Transceiver DWDM System Transponder
GENERAL
Coherent module is a Tunable wavelength for DWDM transmission. Coherent optical communication is an optical transmission using local oscillator for coherent detection, which uses a digital signal processor (DSP). It has the ability to meet or exceed transfer rates of 100G 200G 400G and requires a pair of fiber dual fiber to transmit data, often used for long-distance applications. Coherent CFP2 100G/200G direct connection about 40~50KM high speed can be backward compatible. Its package has CFP CFP2,CFP4,QSFP DD, OSFP and so on. The current mainstream is CFP2 and QSFP DD.
PRODUCT FEATURES
100G CFP2-DCO coherent optical module operating up to 112.30 Gbps
200G CFP2-DCO coherent optical module operating up to 211.45 Gbps
400G CFP2-DCO coherent optical module operating up to 425 Gbps
PM-QPSK (100G/200G) and PM-16QAM (200G / 400G) and PM-16QAM PS (200G) modulation formats
CFP2 MSA Hardware Specification 1.0 with modifications compliant
CFP MSA Management Interface Specification 2.2 with modifications compliant
Maximum power consumption: 31 W
APPLICATIONS
Used on the system's motherboard
Up to 2000 km in MAN DWDM application

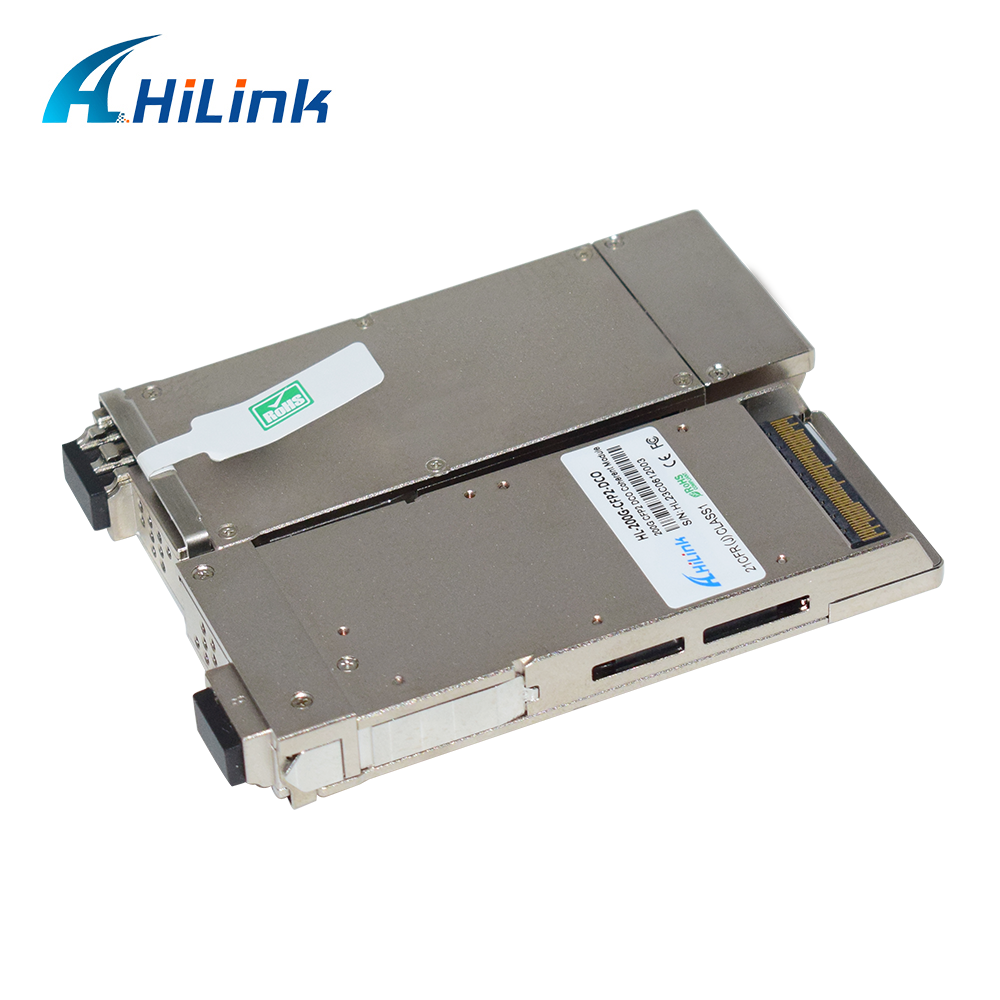

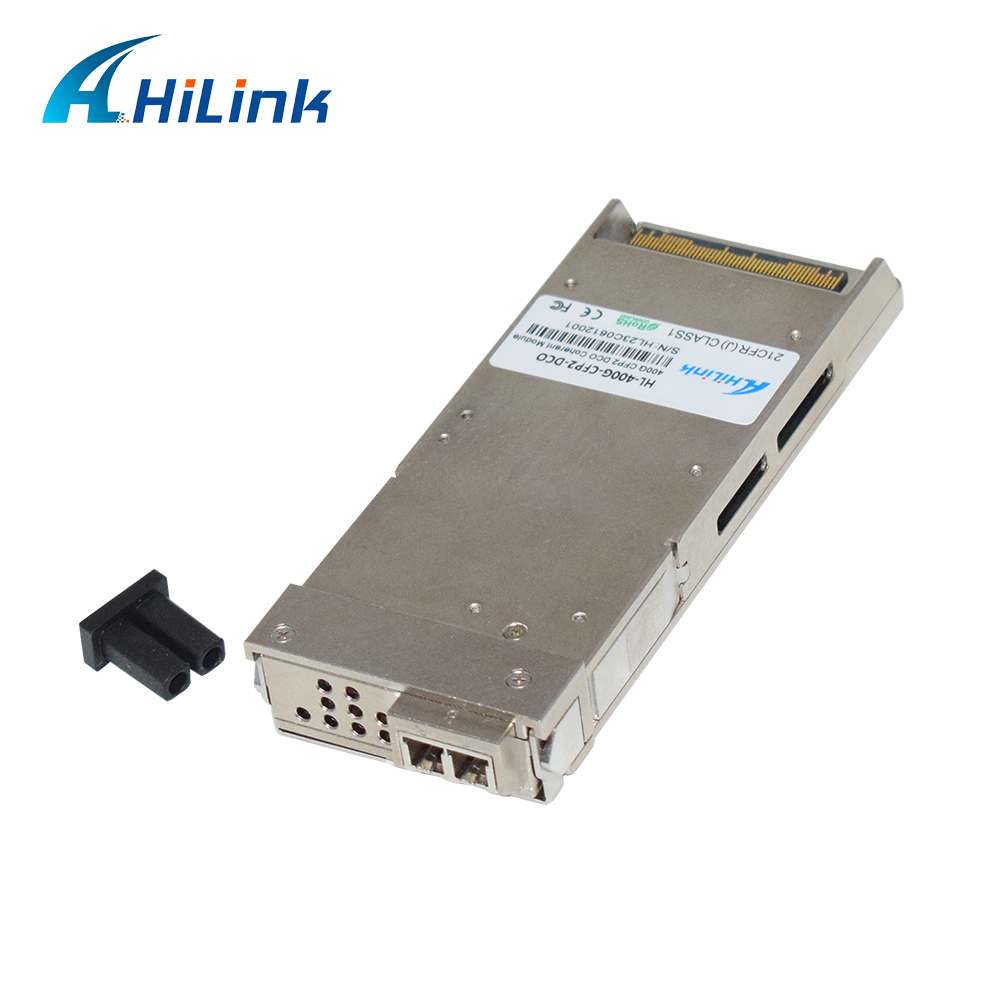

PRODUCT PICTURE SHOW
ORDERING INFORMATION
| Module model | Description |
| COT2-DCO-200G-C | Supports 100G/200G rates,Supports100G PM-QPSK,200G PM-16QAM |
| COT2-DCO-200G-S | Supports 100G/200G rates,Supports100G PM-QPSK,200G PM-16QAM |
| COT2-DCO-400G-L | Supports 200G/400G rates,Supports 200G PM-QPSK,200G PM-16QAM,200G PM-16QAM PS,400G PM-16QAM |
COHERENT APPLICATION CONNECTION
MECHANICAL DESIGN:
Dimensions(L × W × H): 109.5 mm × 42.5 mm × 15.4 mm
