1.25Gbps Single Mode Fiber SFP Optical Module CWDM-SFP-1470 For Gigabit Ethernet Switches
Features:
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Built-in digital diagnostic functions
- CWDM DFB laser transmitter
- Duplex LC connector
- RoHS compliant and Lead Free
- Up to 120 km on 9/125mm SMF at 1.25 Gb/s
- Metal enclosure, for lower EMI
- Single 3.3V power supply
- Commercial operating temperature range: -5°C to 75°C
Application:
1 Gigabit Ethernet Switches and Routers
2 FE/GE/SDH
3 Fibre Channel Switch Infrastructure
4 CWDM System Applications
5 Metro Edge Switching
CWDM Optical Transceiver module
| CWDM SFP | | | | |
| CWDM SFP 1G/2G | (1270nm-1610nm) | 40/80/120km | CWDM SFP | 0-70℃ |
| CWDM SFP 4.25G | (1270nm-1610nm) | 40km& 80km | CWDM SFP | 0-70℃ |
| CWDM XFP(10G) |
| CWDM XFP LR | (1270-1610nm) | 10km | CWDM XFP | 0-70℃ |
| CWDM XFP ER | (1470-1610nm) | 40km | CWDM XFP | 0-70℃ |
| CWDM XFP ZR | (1470-1610nm) | 80km | CWDM XFP | 0-70℃ |
| CWDM SFP+(10G) |
| CWDM SFP 10G LR | (1270-1610nm) | 10km | CWDM SFP+ | 0-70℃ |
| CWDM SFP ER | (1470-1610nm) | 40km | CWDM SFP+ | 0-70℃ |
| CWDM SFP ZR | (1470-1610nm) | 80km | CWDM SFP+ | 0-70℃ |
| CWDM SFP28(25G) |
| CWDM SFP28(25G) | 1270nm~1370nm | 20km | SFP28 | 0-70℃ |
| | | | | |
| CWDM X2(10G) |
| CWDM X2-ERC | 1470nm~1610nm | 40km | CWDM X2 | 0-70℃ |
| CWDM X2-ZRC | 1470nm~1610nm | 80km | CWDM X2 | 0-70℃ |
Hilink SFP compatible brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
General
The 1470nm CWDM SFP are mainly used in CWDM System
Specifications:
| P/N | HL-CW-SFP1470-xx |
| Datarate | 1.25Gb/s |
| Wavelenth | CWDM 1470-1610nm |
| Distance | 120KM |
| Transmitter | DFB |
| Receiver | APD |
| Media | SMF |
| DDM/DOM | Yes |
| Connector | LC Duplex |
| Application | Gigabit Ethernet |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
| Certification | CE/FCC/RoHS/TUV/UL |
| Brand | Hilink ,OEM |
We supply all kinds of optical modules, Datarates range from 100M to 40Gbps,AscentOptics supply all kinds of optical transceivers form factor,including GBIC,SFP,XFP,SFP+,SFP28 and QSFP+ QSFP28 Cable,etc.. if you can't find the product you need, pleas send us inquiry, we'll reply you shortly.

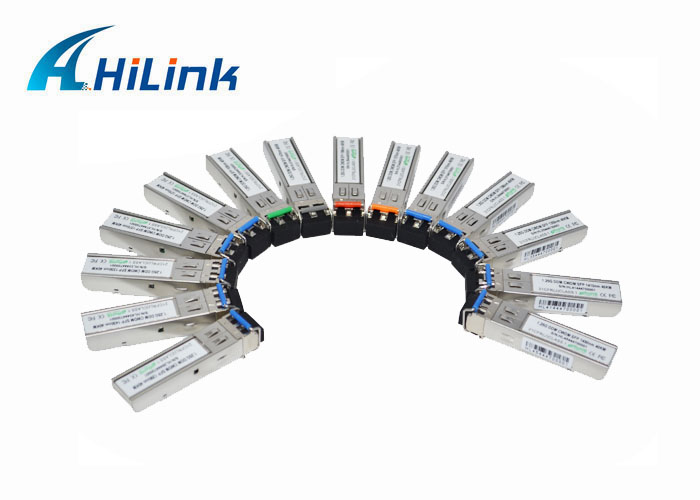

Picture show
Product Tags:
|
|
1.25Gbps Single Mode Fiber SFP Optical Module CWDM-SFP-1470 For Gigabit Ethernet Switches Images
|
