Hot Pluggable QSFP Optical Cable QSFP-4X10G-AOC2M Energy Saving Hilink Brand

Hot Pluggable QSFP Optical Cable QSFP-4X10G-AOC2M Energy Saving Hilink Brand

Product Features

• Electrical interface compliant to QSFP+ connector

(SFF-8436) and SFP+ connectors (SFF-8431)

• Hot Pluggable
• 850nm VCSEL transmitter, PIN photo-detector receiver
• Up to 100m on OM3 MMF
• Operating case temperature: 0 to 70℃
• All-metal housing for superior EMI performance
• RoHS compliant (lead free)

Application

• 40 Gigabit Ethernet
• Fibre Channel Applications
• InfiniBand QDR, SDR, DDR
• High-performance computing clusters
• Servers, switches, storage and host card adapters

Description

Hilink QSFP to 4x SFP+ breakout Active Optical Cable offers IT professionals a cost-effective

interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and

servers.

For typical applications, users can install this splitter Active Optical cable between an available QSFP

port on their 40Gbps rated switch and feed up to four upstream 10GbE-SFP+ enabled switches. Each

QSFP-SFP+ splitter Active Optical cable features a single QSFP connector (SFF-8436) rated for

40Gbps on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.

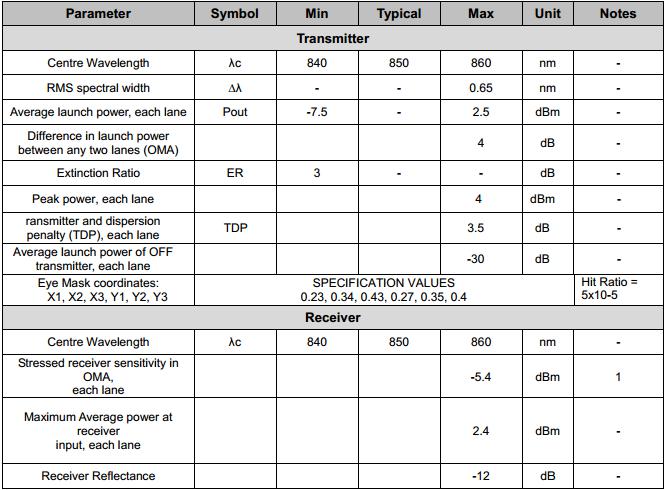

Optical Characteristics

Active Fiber Optic Cable

Cisco AOC Cables

Hot Pluggable QSFP Optical Cable QSFP-4X10G-AOC2M Energy Saving Hilink Brand Images
