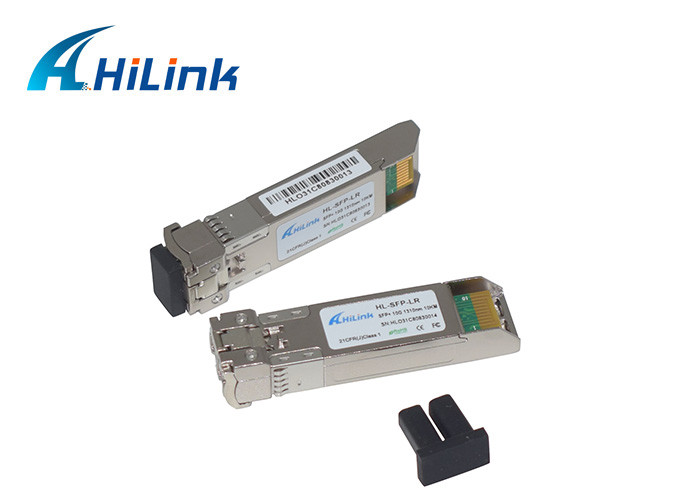

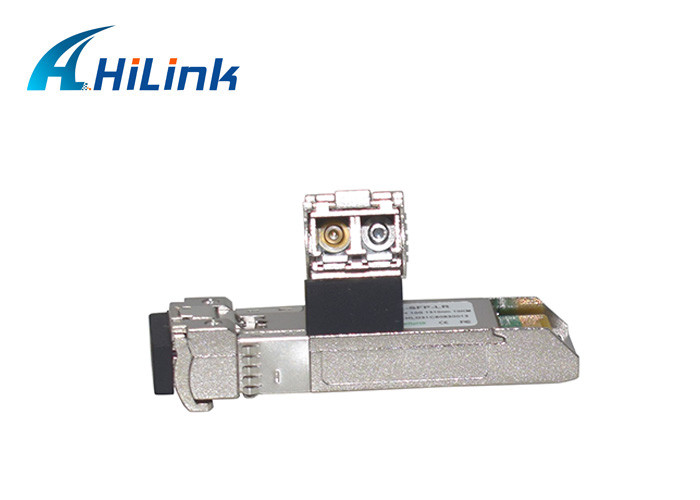

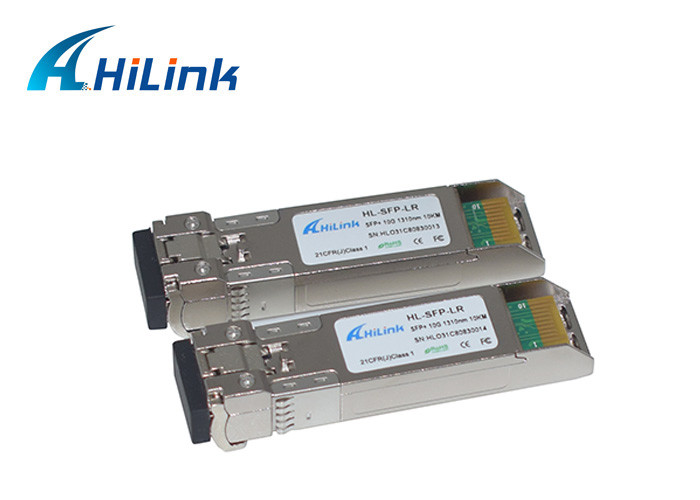

Dual LC 10G 1310nm 10km LR SFP+ Transceiver Module 10GBASE-LR SFP-10G-LR

Name: Dual LC 10G 1310nm 10km LR SFP Transceiver Module 10GBASELR SFP10GLR
Brand: HILINK
Price: 1 USD

Quality Dual LC 10G 1310nm 10km LR SFP+ Transceiver Module 10GBASE-LR SFP-10G-LR wholesale

Brand Name : HILINK

Model Number : HL-SFP-10G-LR

Certification : CE/FCC/RoHS

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000 pcss per Week

Delivery Time : 1-4 days

Packaging Details : Carton box, Retail box, Or by required

Data transfer rate : 10Gbps

Max Distance : 10km

Wavelength : 1310nm

Interface : Duplex LC

Warranty : 3 Years

10G Base-SR/SW at 10.3125G : Yes

Contact Now

10G 1310nm 10km LR DDM SFP+ Transceiver

SFP+ LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber.
This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR/LW base IEEE 802.3ae and 10G Fibre Channel.

Features:
-A. Data transfer rate: 10.3Gbps

-B. Hot Pluggable SFP

-C. 1310nm DFB-LD Transmitter
-D. Distance up to 10km over SMF

-E. Duplex LC Connector
-F. Single 3.3V Power supply and TTL Logic Interface
-G. Compliant with MSA SFF-8431, IEEE 802.3ae
-H. Power Dissipation: SFP+< 1W
-I. DOM/DDM Function

Applications:
-1, 10GBASE-LW/LR
-2, 10G Fiber Channel
-3, Other Optical Link

10G SFP+ Transceiver

Part Number	Application	Data Rate	Wavelength	Distance	Connector Type
HL-SFP-10G-SR	SFP+ 10GBASE-SR	10G	850nm	300m	LC
HL-SFP-10G-LR	SFP+ 10GBASE-LR	10G	1310nm	10km	LC
HL-SFP-10G-LRM	SFP+ 10GBASE-LRM	10G	1310nm	220m	LC
HL-SFP-10G-ER	SFP+ 10GBASE-ER	10G	1550nm	40km	LC
HL-SFP-10G-ZR	SFP+ 10GBASE-ZR	10G	1550nm	80km	LC

Our Service:

1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.

3. We deliver goods by international Express.

4. Quick response for customers' feedback and other questions. Dual LC 10G 1310nm 10km LR SFP+ Transceiver Module 10GBASE-LR SFP-10G-LR
