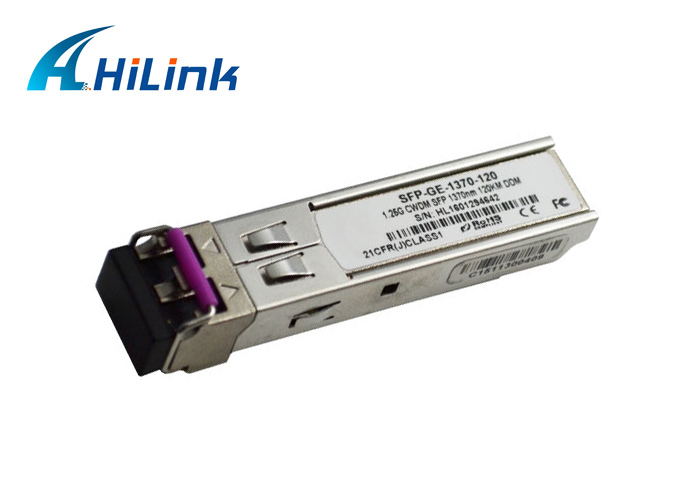

HiLink Duplex LC 1.25G 1370nm 120km CWDM SFP Transceiver with DDM Function

Name: HiLink Duplex LC 125G 1370nm 120km CWDM SFP Transceiver with DDM Function
Brand: HILINK
Price: 1 USD

Quality HiLink Duplex LC 1.25G 1370nm 120km CWDM SFP Transceiver with DDM Function wholesale

Brand Name : HILINK

Model Number : 1.25G-CWDM-1370-120D

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Delivery Time : 1-3 days

Packaging Details : Blister Packaging, 10pcs/ tray

Data Rate : 1.25Gbps

Wavelength nm : 1370

Transfer Distance : 120km SMF

RX Sensi : ≤-24dBm

Connector : Dual LC

Contact Now

* Please leave us a message about the brand your switch is compatible with.Then we will send compatible SFP modules as your request ASAP.

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 120km transmission distance with SMF.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features :

►Data-rate of 1.25Gbps operation

►18 CWDM DFB wavelengths laser and PIN photodetector for 80km transmission

►Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

►Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

►Compatible with SONET OC-24-LR-1

►Compatible with RoHS

►+3.3V single power supply

►Operating case temperature:

Standard : 0 to +70°C

APPLICATION :

►Gigabit Ethernet

►Fiber Channel

►Switch to Switch interface

►Switched backplane applications

►Router/Server interface

►Other optical transmission systems

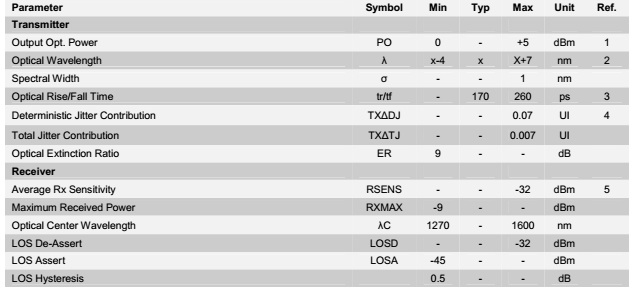

SPECIFICATION :

HiLink Duplex LC 1.25G 1370nm 120km CWDM SFP Transceiver with DDM Function

Packaging & Expressing :

HiLink Duplex LC 1.25G 1370nm 120km CWDM SFP Transceiver with DDM Function

<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

International Express :

We give the optional Express DHL, EMS , E-package and Netherland Post .

If need other expresses , please contact customer service .
