0.8nm Channel Spacing DWDM Mux Demux HL-DWDM - MUX/DEMUX ABS Box 8CH 100GHz

  • 1
  • 2

Brand Name : HILINK

Model Number : HL-DWDM - MUX/DEMUX

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100pcs/week

Condition : New

Channel : 8ch

Logo : Can be customized

Center Wavelength(nm) : ITU 100GHz Grid

Operating temperature : -40~85°C

Customerized : Yes

Contact Now

ABS box 8CH 100GHz DWDM Module MUX/DEMUX


Features:
C Band
2-44 channels DWDM Mux/Demux (CH17-CH61)
Channel spacing: 0.8nm(100GHz Grid)
Com port is simplex
Protocol transparent (10Mbps to 100Gbps)
Low insertion loss
Excellent channel isolation
Epoxy-free optical path
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40~+85℃


Applications:
Channel Add/Drop
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
CATV System


Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
ITU-T G.694.1
RoHS


1xN DWDM Mux/Demux Module

Parameters
Channel Space (GHz)100200
Channel Number1*41*81*161*41*81*16
Center Wavelength (nm)ITU Grid
Center Wavelength Accuracy (nm)± 0.05± 0.1
Channel Passband (@-0.5dB) (nm)0.220.5
Fiber TypeSMF-28e with 900um loose tube or customer specified
IL (dB)11.52.21.72.93.8
Passband Ripple (dB)0.350.40.50.350.40.5
Isolation (dB)Adjacent Channel2528
Non-Adjacent Channel40
PDL (dB)0.2
PMD (ps)0.1
RL (dB)45
Directivity (dB)50
Maximum Optical Power (mw)300
Operating Temperature (°C)-40~85
Storage Temperature (°C)-40~85
BOX Package (mm)100*80*10 or 140*115*18
LGX Package1U,2U
19’’ Rack mount Package1U


Order details

2~44Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other

.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.


Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.
OEM/ODM is acceptable, so tell us your requirements.

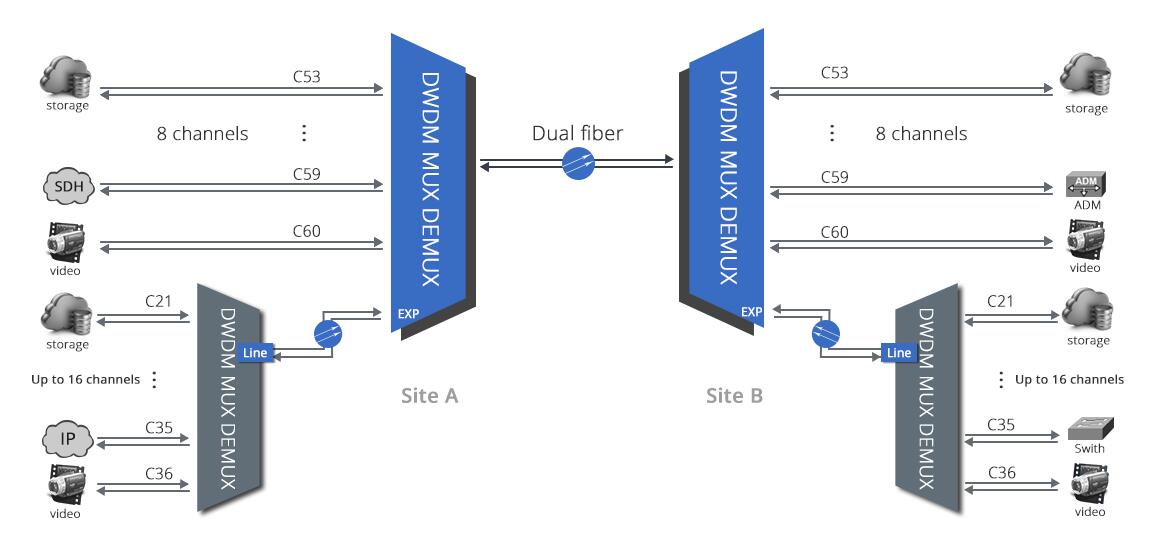

Some solutions example:

0.8nm Channel Spacing DWDM Mux Demux HL-DWDM - MUX/DEMUX ABS Box 8CH 100GHz

SFP compatible Brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

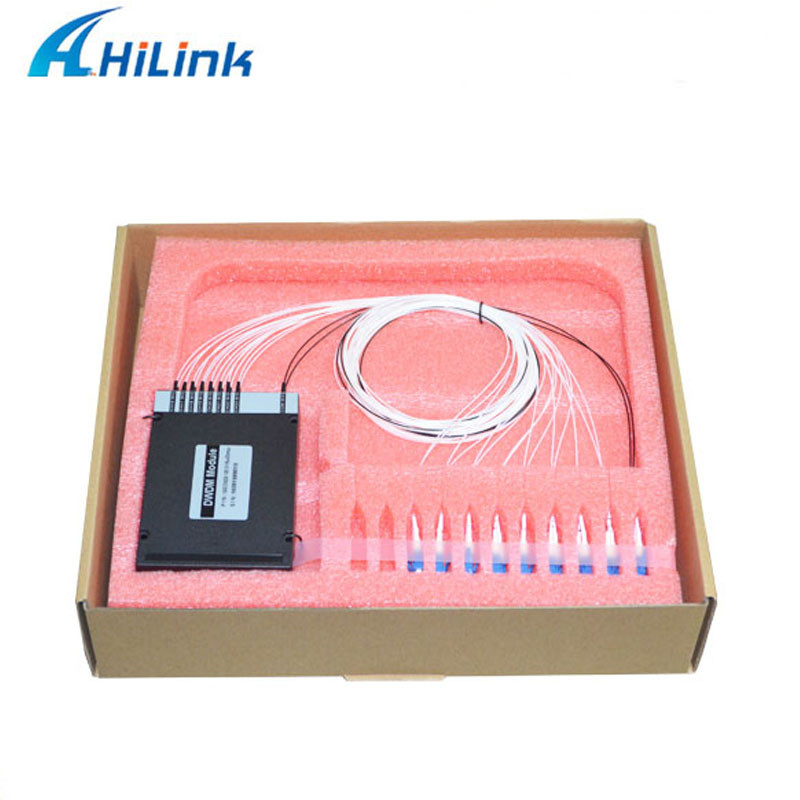

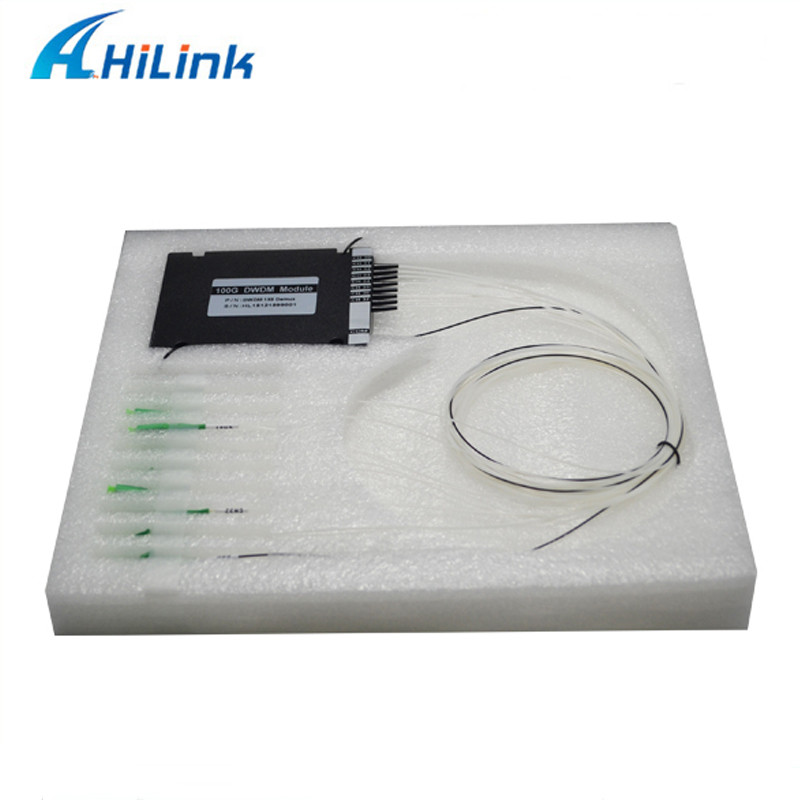

Product Pic:
0.8nm Channel Spacing DWDM Mux Demux HL-DWDM - MUX/DEMUX ABS Box 8CH 100GHz
0.8nm Channel Spacing DWDM Mux Demux HL-DWDM - MUX/DEMUX ABS Box 8CH 100GHz



Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.


Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).


Technician support:

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.


Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.


Company Informations:

Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.

New and old customers are warmly welcomed to visit our factory and office for further cooperation.
Hope to build up a business relation with you.
0.8nm Channel Spacing DWDM Mux Demux HL-DWDM - MUX/DEMUX ABS Box 8CH 100GHz
